Removing and installing tiptronic switches (from model year 2013 onwards)

–	Switch off all electrical equipment.

–	Switch off ignition and take out ignition key.

Removing

–	Remove trim panel with multifunction buttons (4-spoke steering wheel), (3-spoke steering wheel).

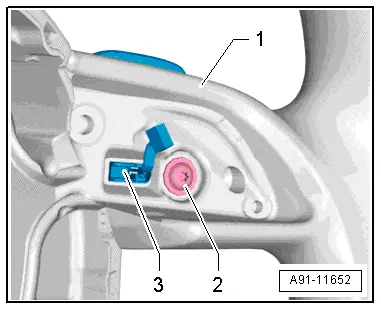

–	Remove bolt -2- on steering wheel -1- and detach tiptronic switch -3- with connecting wire towards rear.

Installing

–	Installation is performed in reverse sequence.

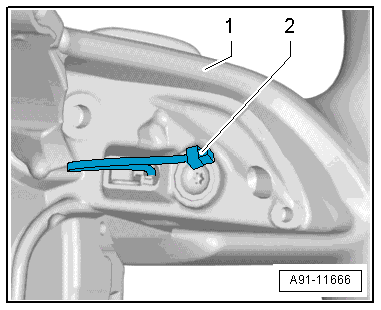

–	Note position of connecting wire -2- to multifunction button.

Tightening torques → Chapter
