Removing and installing traffic data aerialR173
Removing and installing traffic data aerial -R173-
–  Switch off all electrical equipment.
–  Remove ignition key.
Removing
The connectors for the traffic data aerial -R173- are located behind the front interior light -W1-.
–  Remove front interior light -W1- → Electrical system; Rep. gr.96.

Connectors at front interior light -W1- do not need to be detached.

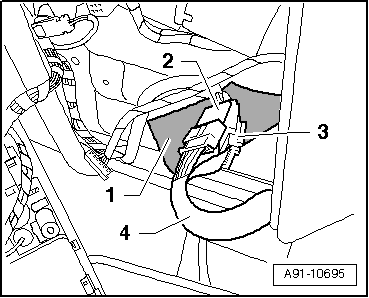

–  Detach foam sheath -1-.
–  Release and disconnect connectors -2- and -3-.
–  Push wiring -4- towards traffic data aerial -R173- at windscreen.
Removing traffic data aerial -R173-
  A91-10695

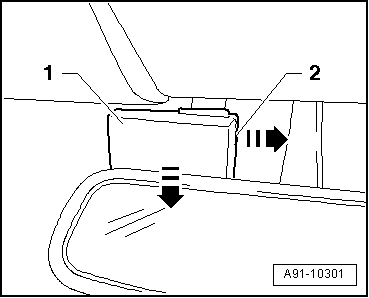

–  Use a small screwdriver to pull out the expanding clip -2- in direction of arrow.
–  Pull traffic data aerial -R173--1- down off windscreen in direction of arrow.
Installing
–  Install in reverse sequence of removal.
Exploded view → Chapter
