A4 Mk3

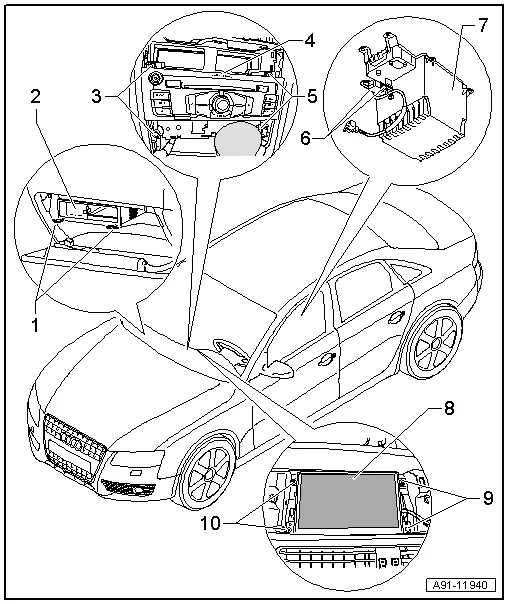

| Overview |
| 1 - | Radio release tool -T10057- |
| 2 - | Connection for external audio sources -R199- |
| q | Connectors (CAN) → Chapter |
| q | Removing and installing → Chapter |
| 3 - | Bolt |
| q | 3 Nm |
| 4 - | Radio -R- |
| q | Connectors for concert / symphony radios → Chapter |
| q | Removing and installing → Chapter |
| 5 - | Bolt |
| q | 3 Nm |
| 6 - | Connection for external audio sources -R199- (AUX IN) |
| q | Connectors (AUX IN) → Chapter |
| q | Removing and installing (AUX IN) → Chapter |
| 7 - | Storage compartment |
| 8 - | Display unit for front information display and operating unit control unit -J685- |
| q | Connectors (CAN) → Chapter |
| q | Removing and installing → Chapter |
| 9 - | Bolt |
| q | 2 Nm |
| 10 - | Bolt |
| q | 2 Nm |
