A4 Mk3

Setting up and aligning calibration unitVAS 6350
Setting up and aligning calibration unit -VAS 6350-
Special tools and workshop equipment required

t  Calibration unit -VAS 6350-
t  → Vehicle diagnostic tester
The calibration unit -VAS 6350- consists of the following items:
t  Wheel centre mounting -VAS 6350/1-
t  Spacing laser -VAS 6350/2-
t  Linear laser -VAS 6350/3-
  W00-10488
Overview of calibration equipment -VAS 6350- when set up
1 - Wheel centre mounting -VAS 6350/1-
2 - Wheel centre mounting -VAS 6350/1-
3 - Locating bracket (right-side)
q   Mounting for spacing laser -VAS 6350/2-
4 - Plastic foot
q   Three on underside of calibration platform
q   Adjustable, for aligning horizontal position of calibration platform
5 - Linear laser -VAS 6350/3-
q   On calibration platform
q   Switching on and off → Owner's Manual
6 - Spacing laser -VAS 6350/2-
q   Operating instructions → Owner's Manual
7 - Spirit level on calibration platform
q   On calibration platform
q   For checking horizontal position
8 - Locating bracket (left-side)
q   Mounting for spacing laser -VAS 6350/2-
9 - Calibration platform
q   -Dimension A- = 1.47 m - 1.90 m between locating brackets of calibration platform and wheel centre mountings -VAS 6350/1-

Aligning calibration platform
–  Position calibration platform behind vehicle at a distance of 1.47 m - 1.90 m from rear wheels, refer to -dimension A- in overview → Anchor.
–  Move calibration unit -VAS 6350- to a horizontal position.

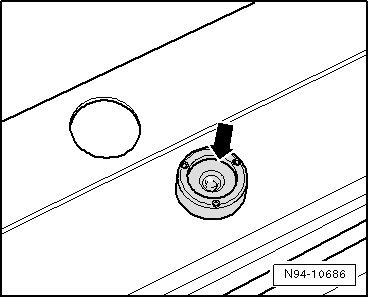

–  To do so, turn plastic feet beneath calibration platform to make air bubble in spirit level move exactly to centre of display -arrow-.
  WARNING
Make sure no light is reflected on calibration platform.
Reflected light impairs the view of the reversing camera -R189- and therefore it may be impossible to perform calibration.
  N94-10686
–  Switch on linear laser -VAS 6350/3--1- on calibration platform and align entire calibration unit -VAS 6350- so that laser beam shines onto centre of Audi rings on rear of vehicle.
–  Check whether Audi rings are in the centre on rear of vehicle; readjust laser beam accordingly.
Continue by calibrating reversing camera -R189- → Chapter.
