Removing and installing reversing cameraR189 (Avant)
Removing and installing reversing camera -R189- (Avant)
Reversing camera -R189- is installed in handle in rear lid.
–  Switch off all electrical equipment.
–  Remove ignition key.
Removing
Reversing camera -R189- is equipped with a trailing cable. Connectors to vehicle wiring harness are located in rear lid.
–  Remove rear lid trim → General body repairs, interior; Rep. gr.70.

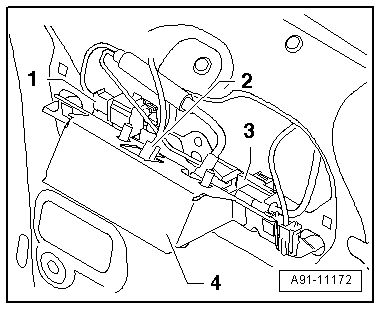

–  Release and unplug connectors -1-, -2- and -3- at handle -4-.
Reversing camera -R189- is permanently fitted in handle -4-.
  A91-11172

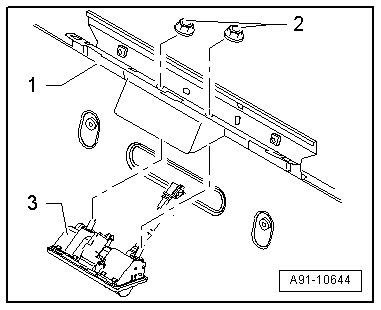

–  Unscrew nuts -2-.
–  Pull handle -3- together with reversing camera -R189- out of rear lid -1-.
Installing
–  Install in reverse sequence of removal.
–  Close rear lid.
–  Perform calibration → Chapter.
Tightening torques → Chapter
  A91-10644
