Connectors for aerial amplifier for mobile telephoneR86 (from model year 2009 onwards)

Connectors for aerial amplifier for mobile telephone -R86- (from model year 2009 onwards)

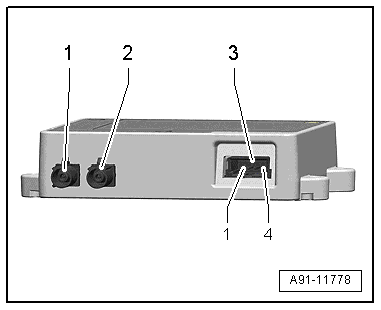

Aerial amplifier for mobile telephone -R86-

1 -	Connection (GSM) from radio, telephone and navigation system aerial -R52- (roof aerial)

2 -	Aerial connection to telephone bracket -R126-

3 -	Multi-pin connector, 4-pin (T4ak)

Note

Contacts which are not listed are not used.

3 - Multi-pin connector, 4-pin, (T4ak)

1 -	Terminal 30

2 -	Terminal 31

3 -	Switch-on signal from telephone transmitter and receiver unit -R36- (CAN)/control unit 1 for information electronics -J794- (MMI)

4 -	Safety PIN (not used)
