Removing and installing telephone bracketR126
Removing and installing telephone bracket -R126-
–  Switch off all electrical equipment.
–  Remove ignition key.
Removing
–  Remove telephone handset -R37-.
–  Remove SIM card from holder.
–  Remove centre console storage compartment → General body repairs, interior; Rep. gr.68.

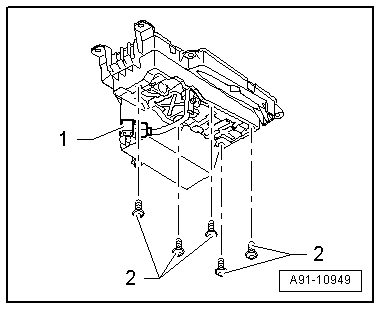

–  Release and unplug connector -1-.
–  Unscrew bolts -2- on reverse side.
–  Press telephone bracket -R126- upwards out of storage compartment.
Installing
–  Install in reverse sequence of removal.
Tightening torques → Chapter
  A91-10949
