Removing and installing telephone transmitter and receiver unitR36

Removing and installing telephone transmitter and receiver unit -R36-

The telephone transmitter and receiver unit -R36- is located beneath front seat (right-side).

–	Switch off all electrical equipment.

–	Remove ignition key.

–	When renewing control unit, select „Replacement“ function for appropriate control unit in „Guided Fault Finding“.

Removing

–	Remove front seat (right-side) → General body repairs, interior; Rep. gr.72.

–	Fold back floor covering → General body repairs, interior; Rep. gr.70.

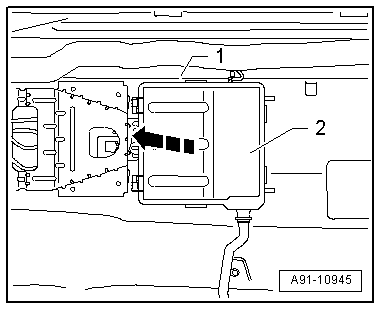

–	Release electronics box cover -2- and open electronics box -1-.

The telephone transmitter and receiver unit -R36- is only wedged in the electronics box.

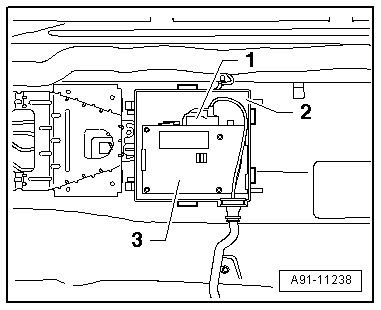

–	Pry telephone transmitter and receiver unit -R36--3- out of electronics box -2-.

–	Release and unplug connector -1- at telephone transmitter and receiver unit -R36--3-.

Installing

–	Install in reverse sequence of removal.

Exploded view → Chapter
