A4 Mk3

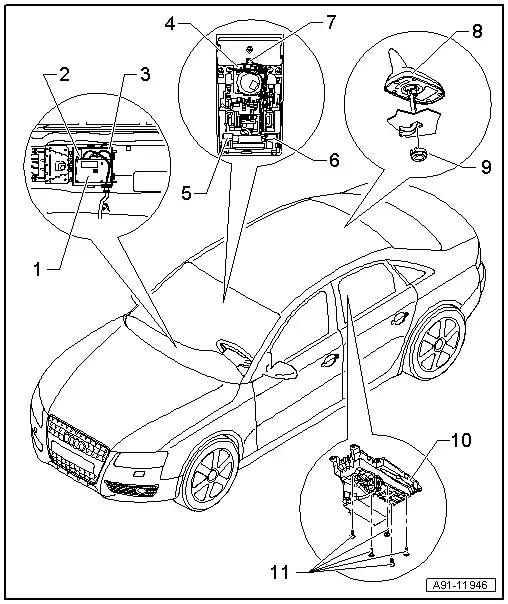

Overview (up to week 44/08) |
1 - | Telephone transmitter and receiver unit -R36- |
q | Pin assignment of mobile phone pre-installation (CAN) → Chapter |
q | Pin assignment of mobile phone pre-installation (MMI up to week 44/08) → Chapter |
q | Removing and installing → Chapter |
2 - | Aerial for Bluetooth -R152- |
3 - | Electronics box |
4 - | Electrical connector (T6c) |
5 - | Front left microphone -R140- |
q | Removing and installing → Chapter |
6 - | Front right microphone -R141- |
q | Removing and installing → Chapter |
7 - | Front interior light -W1- |
q | Microphone unit in front roof module -R164- |
q | Overview (up to week 44/08) → Chapter |
8 - | Radio, telephone and navigation system aerial -R52- |
q | Overview saloon → Chapter |
9 - | Nut |
q | 6 Nm |
10 - | Telephone bracket -R126- |
q | Removing and installing (mobile telephone retainer) → Chapter |
11 - | Bolt |
q | 1 Nm |
