Pin assignment at fuel gauge sender 2G169

Pin assignment at fuel gauge sender 2 -G169-

–	Unplug 2-pin connector at flange on fuel tank; Procedure → Rep. gr.20.

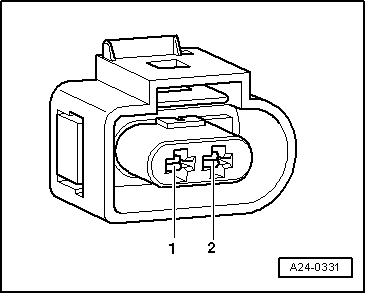

Pin assignment for 2-pin connector at fuel gauge sender 2 -G169-

1 -	Wiring between fuel gauge sender 2 -G169- and instrument cluster (sender earth) - Pin 10

2 -	Wiring between fuel gauge sender 2 -G169- and instrument cluster (fuel gauge) - Pin 9
