A4 Mk3

Removing and installing light switchE1
Removing and installing light switch -E1-
Special tools and workshop equipment required

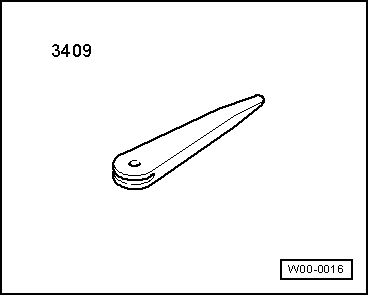

t  Removal wedge -3409-
  W00-0016
Removing
–  Switch off ignition and take out ignition key.
–  Turn light switch to position „0“.

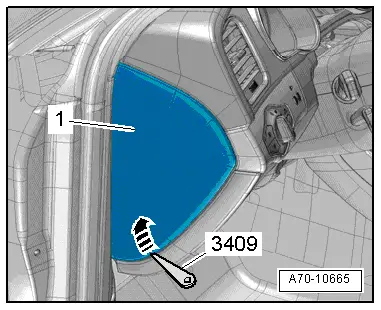

–  Lever side cover -1- off dash panel with removal wedge -3409--arrow- and detach.
  A70-10665

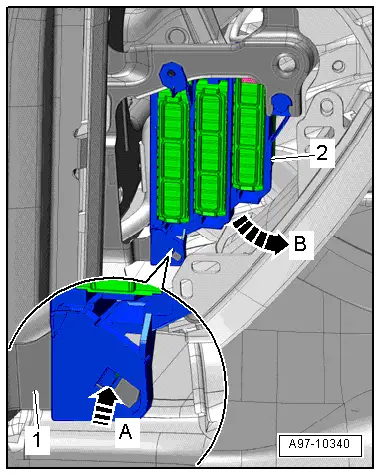

–  Release retaining clip -arrow A- and swivel out fuse holder C -2- in direction of -arrow B- on central tube -1- for dash panel and place down facing inside.
  A97-10340
–  Reach through opening on dash panel side and press light switch -E1--item 1- out of dash panel trim (driver's side) towards rear -arrow-.
–  Unplug electrical connector.
Installing
Installation is carried out in the reverse order; note the following:
–  Press switch into switch housing until catch engages.
  A96-10620
