Removing and installing interior light/reading light (front)
Removing and installing interior light/reading light (front)

Removing
–  Switch off ignition and take out ignition key.

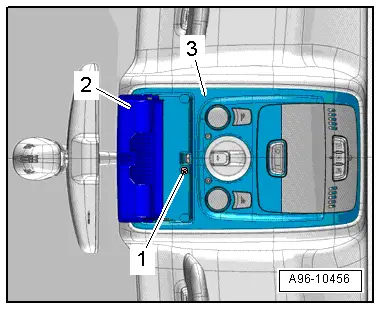

–  Open sunglasses compartment -2-.
–  Remove bolt -1-.
–  Pivot the interior light/reading light (front) -3- downwards and remove from roof trim.
–  Unplug electrical connectors.
Installing
l  Tightening torque → Fig.
Installation is carried out in the reverse order; note the following:
–  Fit interior light and secure.
  A96-10456
