Removing and installing alarm horn -H12-
Removing

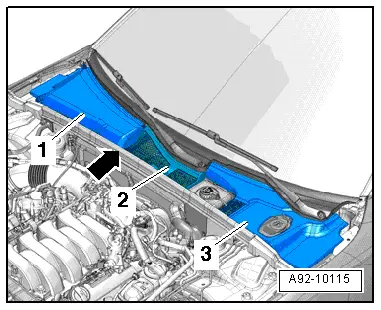

Vehicles up to 05.2008:
–
Unclip plenum chamber covers
-1-
and
-2-
and detach.
Note
Disregard
-item 3-
and
-arrow-
.

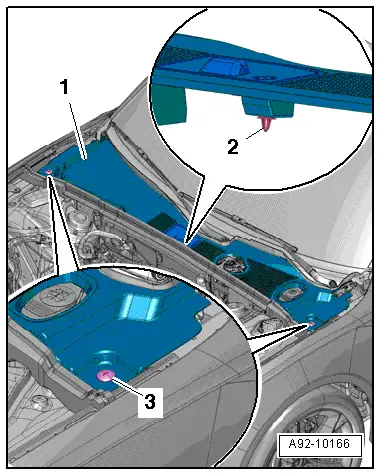

Vehicles from 06.2008 onwards:
–
Remove bolts
-3-
.
–
Unclip retaining clips
-2-
from retainer and detach plenum chamber cover
-1-
.
All vehicles (continued):
–
Remove nut
-3-
.
–
Unplug electrical connector
-1-
.
–
Take out alarm horn -H12-
-item 2-
upwards.
Installing
l
Tightening torque
→ Chapter
Installation is carried out in the reverse order; note the following:
–
Engage retaining tab in recess on mounting bracket.
