A4 Mk3

Removing and installing anti-theft alarm sensorG578
Removing and installing anti-theft alarm sensor -G578-

Removing
–  Remove interior light/reading light (front) → Chapter.
–  Release retaining clips -arrows B- and remove individual sensor for anti-theft alarm -item 1- from interior light/reading light.
–  Move electrical wire -2- clear.
–  Release retaining clips -arrows A- and remove anti-theft alarm sensor -G578--item 3- from interior light/reading light.
  A96-10412

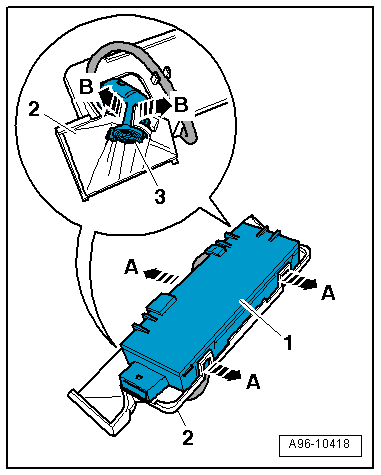

–  Press retaining clips to one side -arrow A- and take anti-theft alarm sensor -G578--item 1- out of mounting -2-.
–  Release retaining clips -arrows B- and press individual sensors -3- for anti-theft alarm out of mounting.
Installing
Installation is carried out in the reverse order; note the following:
–  Install interior light/reading light (front) → Chapter.
  A96-10418
