A4 Mk3

Removing and installing interior monitoring switchE183/alarm system off switchE217
Removing and installing interior monitoring switch -E183-/alarm system off switch -E217-

Removing
–  Switch off ignition and take out ignition key.

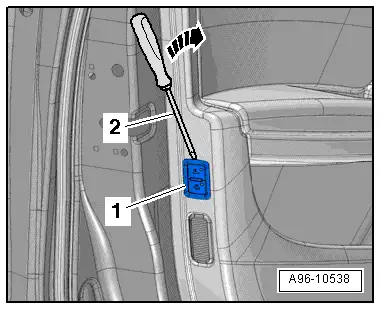

–  Carefully pry trim -1- out of door trim -arrow- using a small screwdriver -2-.
–  Unplug electrical connector.
  A96-10538

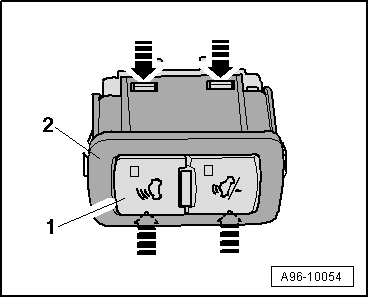

–  Carefully release retaining hooks -arrows- using a small screwdriver.
–  Remove interior monitoring switch -E183-/alarm system off switch -E217--item 1- from trim -2- towards rear.
Installing
Install in reverse order.
  A96-10054
