A4 Mk3
Vehicle electrics
Electrical system
Lights, lamps, switches outside
Halogen headlights - vehicles from model year 2013 onwards
Removing and installing sealing frame
Removing and installing sealing frame
Removing and installing sealing frame
Removing
–
Remove headlight housing
→ Chapter
.
–

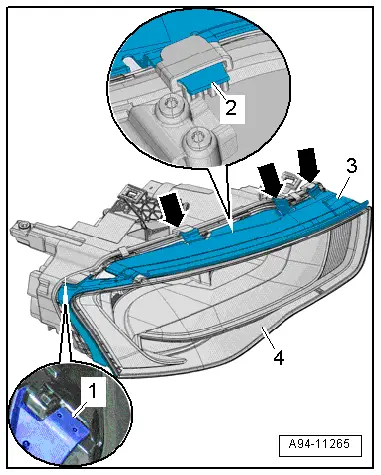

Unfasten sealing frame
-3-
on underside
-1-
and side of headlight housing
-4-
.
–
Release retaining tab
-2-
-arrows-
and remove sealing frame.
Installing
Installation is carried out in the reverse order; note the following:
–
Install headlight housing
→ Chapter
.
