Renewing headlight dipped beam bulb M29/M31
Renewing headlight dipped beam bulb -M29-/-M31-

Removing
–  Right-side: remove air cleaner housing → Rep. gr.23 or → Rep. gr.24.
–  Pull housing cover -1- off headlight housing -arrow-.
  A94-11237

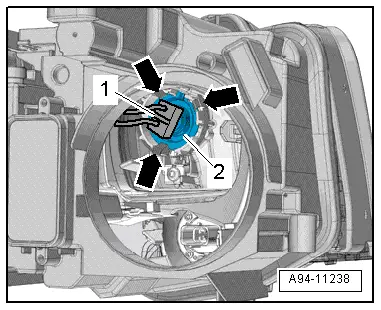

–  Remove bulb -2- from spring clips -arrows-.
–  Unplug electrical connector -1- at bulb.
Installing
Installation is carried out in the reverse order; note the following:
–  Plug electrical connector in again and push new bulb beyond resistance of spring clips into housing; do not touch glass part of bulb with bare hands.
  A94-11238

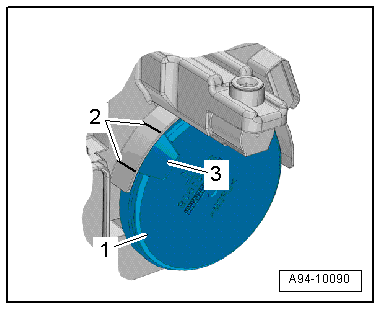

–  Close housing cover -1- and make sure tab -3- and marks -2- on headlight housing align.
–  Right-side: install air cleaner housing → Rep. gr.23 or → Rep. gr.24.
