A4 Mk3

Removing and installing inner tail light cluster
Removing and installing inner tail light cluster

Removing
–  Switch off ignition and take out ignition key.
–  Turn light switch to position „0“.

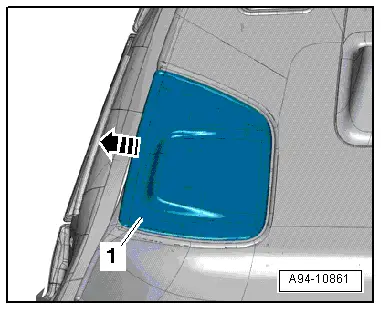

–  Detach cover -1- in direction of -arrow-.
  A94-10861
–  Unplug electrical connector -1-.
–  Remove nut -3- and remove retainer bracket -2-.
–  Detach inner tail light from the outside.
  A94-11344
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torque → Chapter
  Note
Ensure that seal between body and tail light housing seals completely.

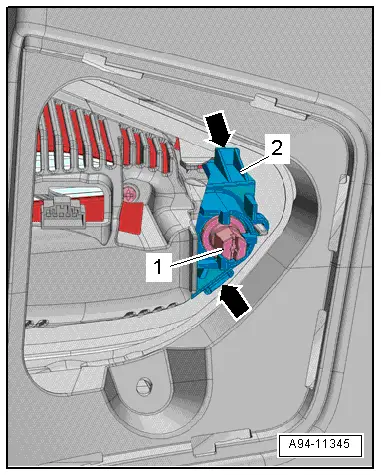

–  Fit retainer bracket -2- onto inner tail light stud and tighten nut -1- three turns.
–  Position inner tail light at outer edge of rear lid (retainer bracket should audibly engage).
–  Tighten nut while pressing tail light onto rear lid.
  Note
As the nut is tightened the retainer bracket becomes wedged in the rear lid -arrows-.
  A94-11345
