A4 Mk3

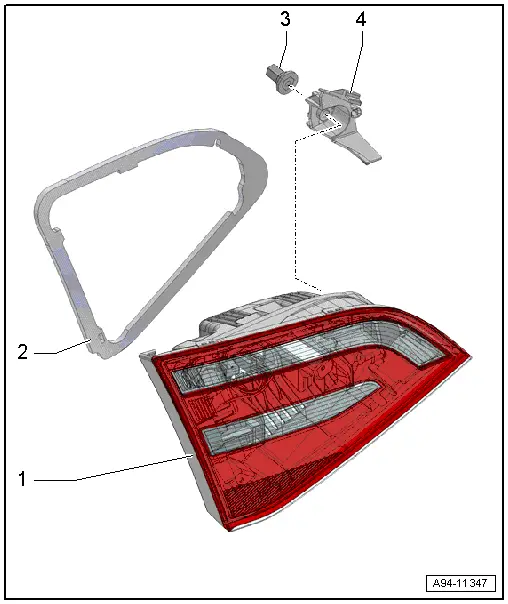

| Exploded view of inner tail light cluster |
| 1 - | Inner tail light cluster |
| q | Removing and installing → Chapter |
| 2 - | Seal |
| q | Renew if damaged |
| 3 - | Nut |
| q | 4 Nm |
| 4 - | Retainer bracket |
| q | Secures tail light cluster to rear lid |
