A4 Mk3

Removing and installing reversing light bulb M16/M17
Removing and installing reversing light bulb -M16-/-M17-

Removing
–  Remove outer tail light cluster → Chapter.

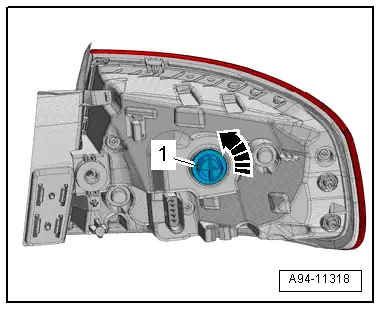

–  Turn bulb holder -1- anti-clockwise -arrow- and pull it out of tail light housing.
–  Pull reversing light bulb out of bulb holder.
Installing
l  Tightening torque → Chapter
Installation is carried out in the reverse order; note the following:
–  Insert new bulb in bulb holder, taking care not to touch glass part of bulb with bare hands.
–  Install outer tail light cluster → Chapter.
  A94-11318
