A4 Mk3

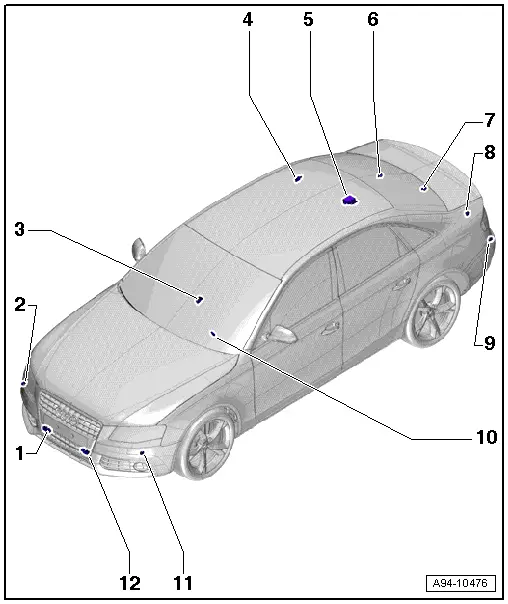

| Overview of parking aid |
| 1 - | Front centre right parking aid sender -G253- |
| q | In radiator grille |
| q | Removing and installing: |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - saloon and Avant up to model year 2012“ |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - saloon and Avant from model year 2013 onwards“ |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - allroad“ |
| 2 - | Front right parking aid sender -G252- |
| q | In front bumper |
| q | Removing and installing: |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - saloon and Avant up to model year 2012“ |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - saloon and Avant from model year 2013 onwards“ |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - allroad“ |
| 3 - | Parking aid button -E266- |
| q | Only for 8-channel parking aid |

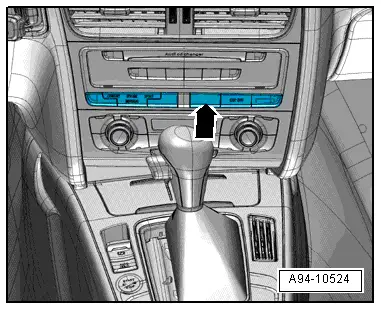

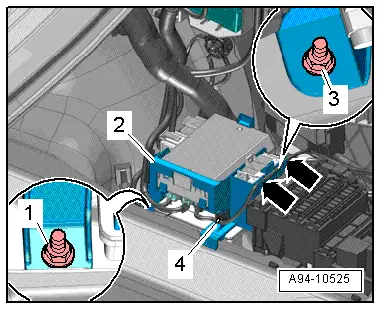

| q | Fitting location → Fig. |
| 4 - | Rear parking aid warning buzzer -H15- |
| q | At belt guide (rear right) |
| q | Removing and installing → Chapter |
| 5 - | Parking aid control unit -J446- |
| q | Depending on version, integrated into onboard supply control unit -J519- from model year 2013 onwards → Electronic parts catalogue |
| q | Removing and installing: |
| t | → Chapter „Removing and installing parking aid control unit -J446- - vehicles without towing bracket“ |
| t | → Chapter „Removing and installing parking aid control unit -J446- - vehicles with towing bracket“ |
| 6 - | Rear right parking aid sender -G206- |
| q | In rear bumper |
| q | Removing and installing → Chapter |
| 7 - | Rear centre right parking aid sender -G205- |
| q | In rear bumper |
| q | Removing and installing → Chapter |
| 8 - | Rear centre left parking aid sender -G204- |
| q | In rear bumper |
| q | Removing and installing → Chapter |
| 9 - | Rear left parking aid sender -G203- |
| q | In rear bumper |
| q | Removing and installing → Chapter |
| 10 - | Front parking aid warning buzzer -H22- |
| q | Only for 8-channel parking aid |
| q | At central tube for dash panel behind dash panel trim (driver's side) |
| q | Removing and installing → Chapter |
| 11 - | Front left parking aid sender -G255- |
| q | In front bumper |
| q | Removing and installing: |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - saloon and Avant up to model year 2012“ |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - saloon and Avant from model year 2013 onwards“ |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - allroad“ |
| 12 - | Front centre left parking aid sender -G254- |
| q | In radiator grille |
| q | Removing and installing: |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - saloon and Avant up to model year 2012“ |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - saloon and Avant from model year 2013 onwards“ |
| t | → Chapter „Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - allroad“ |
