Removing and installing front parking aid senders G252/G253/G254/G255 - allroad
Removing and installing front parking aid senders -G252-/-G253-/-G254-/-G255- - allroad

Removing
Outer senders:
–  Remove front wheel housing liner → Rep. gr.66.

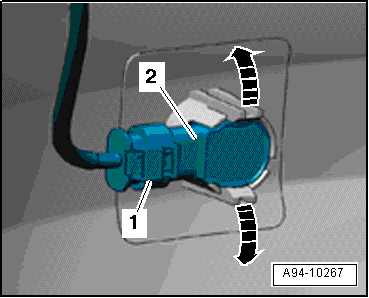

–  Press the two retaining tabs apart -arrows- and at the same time press out sender -2- from outside to inside.
–  Unplug electrical connector -1- on sender.
  A94-10267
Inner senders:
–  Remove air intake grille → Rep. gr.66.
–  Reach through opening for air intake grille and press the two retaining tabs apart -arrows-, at the same time press out sender -2- from outside to inside.
–  Unplug electrical connector -1- on sender.
Installing
Installation is carried out in the reverse order; note the following:
Outer senders:
–  Install front wheel housing liner → Rep. gr.66.
Inner senders:
–  Install air intake grille → Rep. gr.66.
  A94-10267
