A4 Mk3

Removing and installing bulb holder
Removing and installing bulb holder

Removing
–  Remove outer tail light cluster → Chapter.

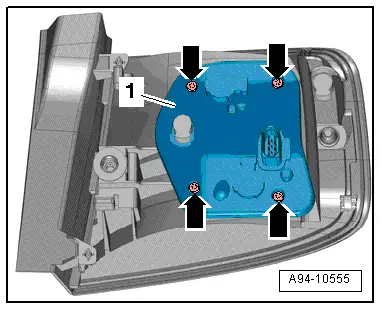

–  Remove bolts -arrows-.
–  Take bulb holder -1- out of tail light.
–  Screw bulbs out of bulb holder.
Installing
Installation is carried out in the reverse order; note the following:
–  Insert new bulb in bulb holder, taking care not to touch glass part of bulb with bare hands.
–  Install outer tail light cluster → Chapter.
  A94-10555
