Removing and installing bulb holder > < Exploded view of outer tail light cluster

A4 Mk3

Removing and installing outer tail light cluster
Removing and installing outer tail light cluster

Removing
–  Switch off ignition and take out ignition key.
–  Turn light switch to position „0“.
–  Open cover in luggage compartment side trim.
–  Remove stud -2-.

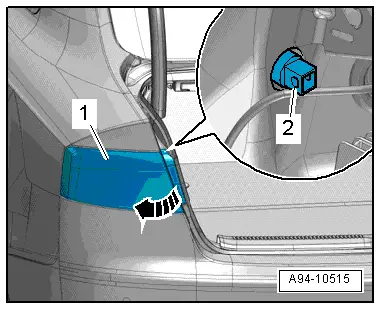

–  Swivel tail light -1- outwards -arrow-, and at the same time disengage retaining pin from body.
–  Unplug electrical connector.
Installing
l  Tightening torque → Chapter
Installation is carried out in the reverse order; note the following:
  Note
Ensure that self-adhesive seal on tail light housing seals properly.
–  Fit tail light in position on body and press retaining pin into hole.
–  Tighten stud -2-.
  A94-10515
