A4 Mk3

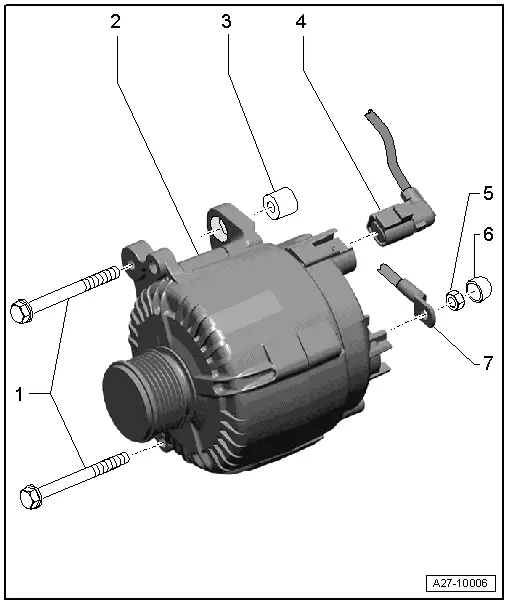

| Exploded view of alternator with sliding bushes |
| 1 - | Bolts |
| q | 23 Nm |
| 2 - | Alternator |
| q | Removing and installing: |
| t | Vehicles with 2.0 ltr. TDI engine → Chapter. |
| t | Vehicles with 2.7 ltr. and 3.0 ltr. TDI engine without auxiliary heater → Chapter |
| t | Vehicles with 2.7 ltr. and 3.0 ltr. TDI engine with auxiliary heater → Chapter |
| t | Vehicles with 2.7 ltr. and 3.0 ltr. TDI engine with dual clutch gearbox → Chapter |
| 3 - | Sliding bush |
| q | Ensure that bushes slide freely, as the clamping pressure of a stiff bush will be insufficient even when the correct tightening torque is applied |
| 4 - | Electrical connector |
| 5 - | Nut |
| q | 16 Nm |
| 6 - | Cap |
| 7 - | Terminal 30/B+ |
