Removing and installing 6-position connector point, A-pillar, passenger's side
Removing and installing 6-position connector point, A-pillar, passenger's side

Removing
–  With ignition switched off, disconnect earth cable at battery → Chapter.
–  Remove bottom right A-pillar trim → Rep. gr.70.
–  Press retaining clip in direction of -arrow- and detach connector point -1- from A-pillar.
–  Unclip fuse holder -2- at connector point.
–  If fitted, unplug electrical connector -2- for airbag → Rep. gr.69.
  A97-10455
–  Pull out relays and control units.

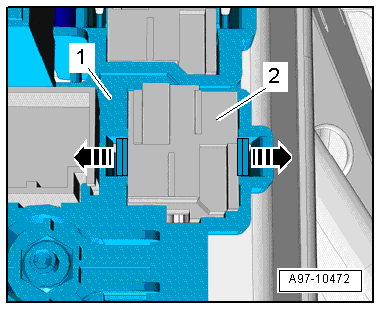

–  Release retaining clips -arrows- and press out relay carrier -2- towards rear out of holder -1-.
  Note
The exact contact assignment for the 6-position connector point in the A-pillar (passenger's side) can be found in the applicable current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
Installing
Installation is carried out in the reverse order; note the following:
–  Plug in electrical connector for airbag → Rep. gr.69.
–  Install bottom right A-pillar trim → Rep. gr.70.
–  Connect battery. Steps required → Anchor.
