Removing and installing mounting for CAN isolating connector (dash panel)T46s
Removing and installing mounting for CAN isolating connector (dash panel) -T46s-

Removing
–  Remove glove box → Rep. gr.68.
–  Remove CAN isolating connector (dash panel) -T46s- → Chapter.
–  Move locking lever -2- to „open“ position -arrow-.
–  Press release tab -1- and press out mounting -3- for CAN isolating connector (dash panel) -T46s- towards rear.

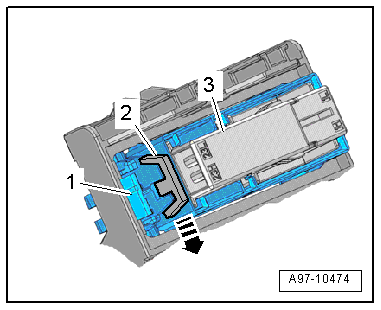

  A97-10474
Installing
Installation is carried out in the reverse order; note the following:
–  Move locking lever -1- on mounting to „closed“ position.
l  The two markings -arrows- must face each other.
–  Install CAN isolating connector (dash panel) -T46s- → Chapter.
–  Install glove box → Rep. gr.68.

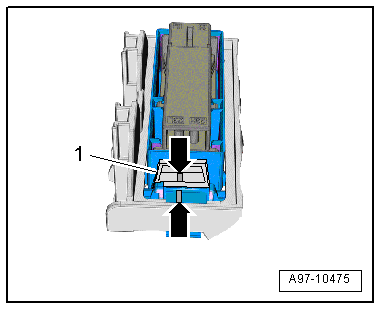

  A97-10475
