Removing and installing fuse carrier in dash panel (left-side) > < Overview of relay carrier/fuse carrier (dash panel), relay carrier/fuse carrier (A-pillar)

A4 Mk3

Removing and installing fuse holder CSC with fuse carrier in dash panel (left-side)
Removing and installing fuse holder C -SC- with fuse carrier in dash panel (left-side)
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing

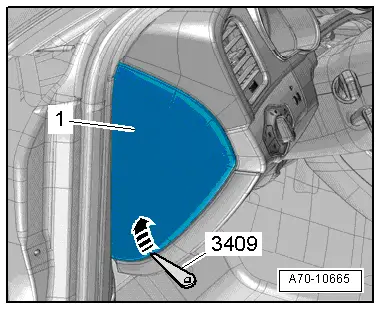

–  Lever side cover -1- off dash panel with removal wedge -3409--arrow- and detach.
  A70-10665
–  Release retaining clips -1- in direction of -arrow- and press fuse carriers -2 ... 4- out of fuse holder C towards rear.
  A97-10341

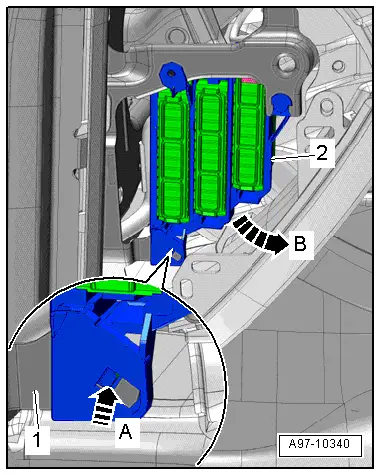

–  Release retaining clip -arrow A- and swivel out fuse holder C -item 2- in direction of -arrow B- on central tube -1- for dash panel.
Installing
Install in reverse order.
  A97-10340

Removing and installing fuse carrier in dash panel (left-side) > < Overview of relay carrier/fuse carrier (dash panel), relay carrier/fuse carrier (A-pillar)
