Removing and installing fuse carrier in dash panel (left-side)

Removing

–	With ignition switched off, disconnect earth cable at battery → Chapter.

–	Remove fuse holder C in dash panel (left-side) → Chapter.

Note

If necessary, remove dash panel trim (top, driver's side) → Rep. gr.68.

–	If fitted, release captive fastener and pull it off fuse carrier.

–	Remove fuses from fuse carrier.

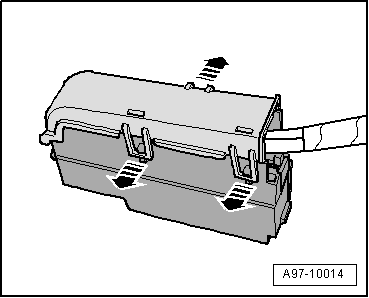

–	Release retaining clips -arrows- and remove cover from fuse carrier.

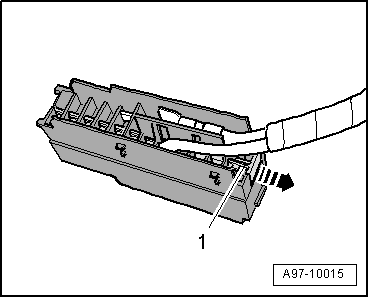

–	Pull off retaining strip -1- for connectors -arrow- and take connectors out of socket.

Note

Exact assignment of contacts in fuse carrier in dash panel (left-side) can be found in applicable current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.

Installing

Installation is carried out in the reverse order; note the following:

–	Install fuse holder C in dash panel (left-side) → Chapter.

–	Connect battery. Steps required → Anchor.
