A4 Sedan L4-2.0L Turbo (BPG) (2005)

Page 1
background image

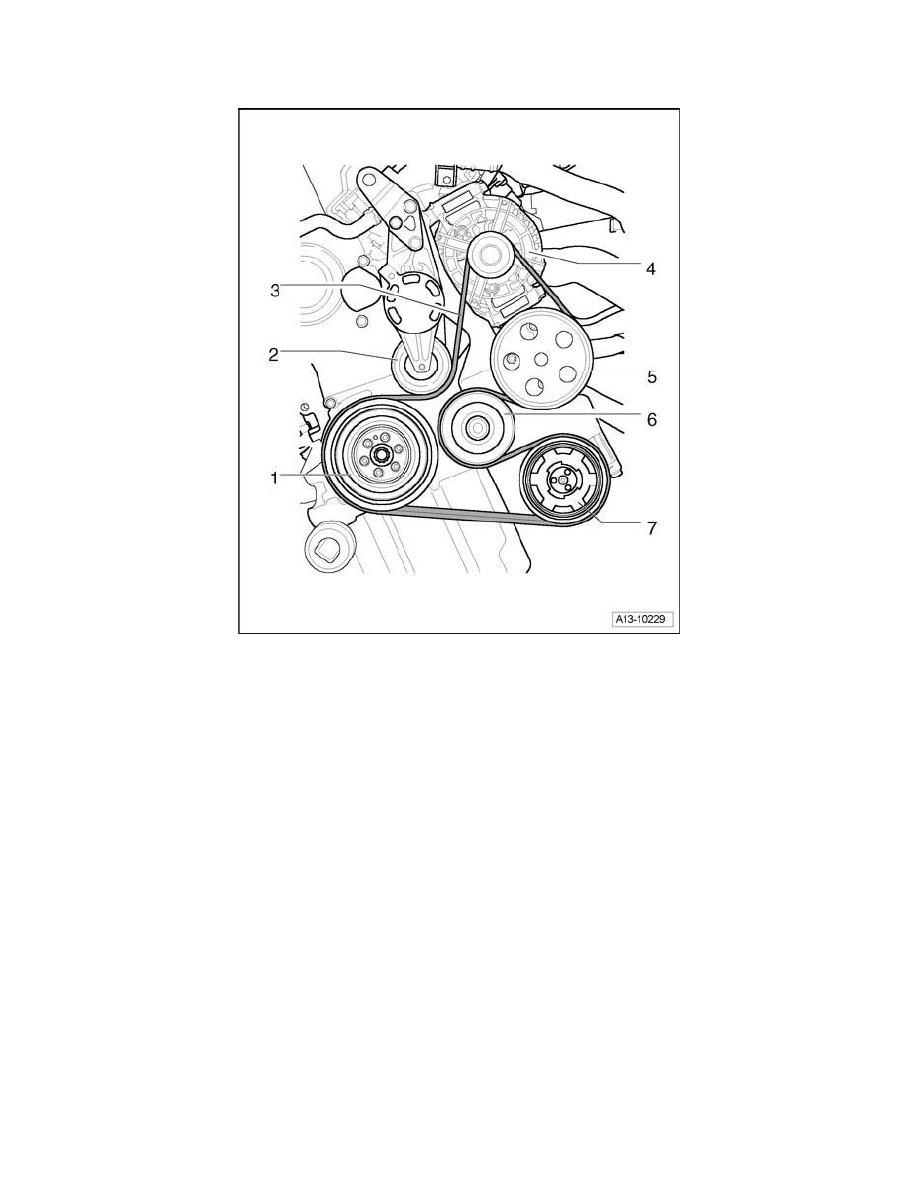

Drive Belt: Diagrams

Ribbed belt routing

1. Vibration damper
2. Belt tensioner for ribbed belt
3. Ribbed belt
4. Generator
5. Power-steering pump
6. Idler roller
7. Air conditioner compressor
