Cruise Control Switch: Diagrams

Make

Audi

Model

A4 Sedan

Engine

V6-2.8L (AFC)

Year

1996

Section

Cruise Control Switch › Diagrams

Cruise ControlDiagrams

Cruise Control Switch: Diagrams

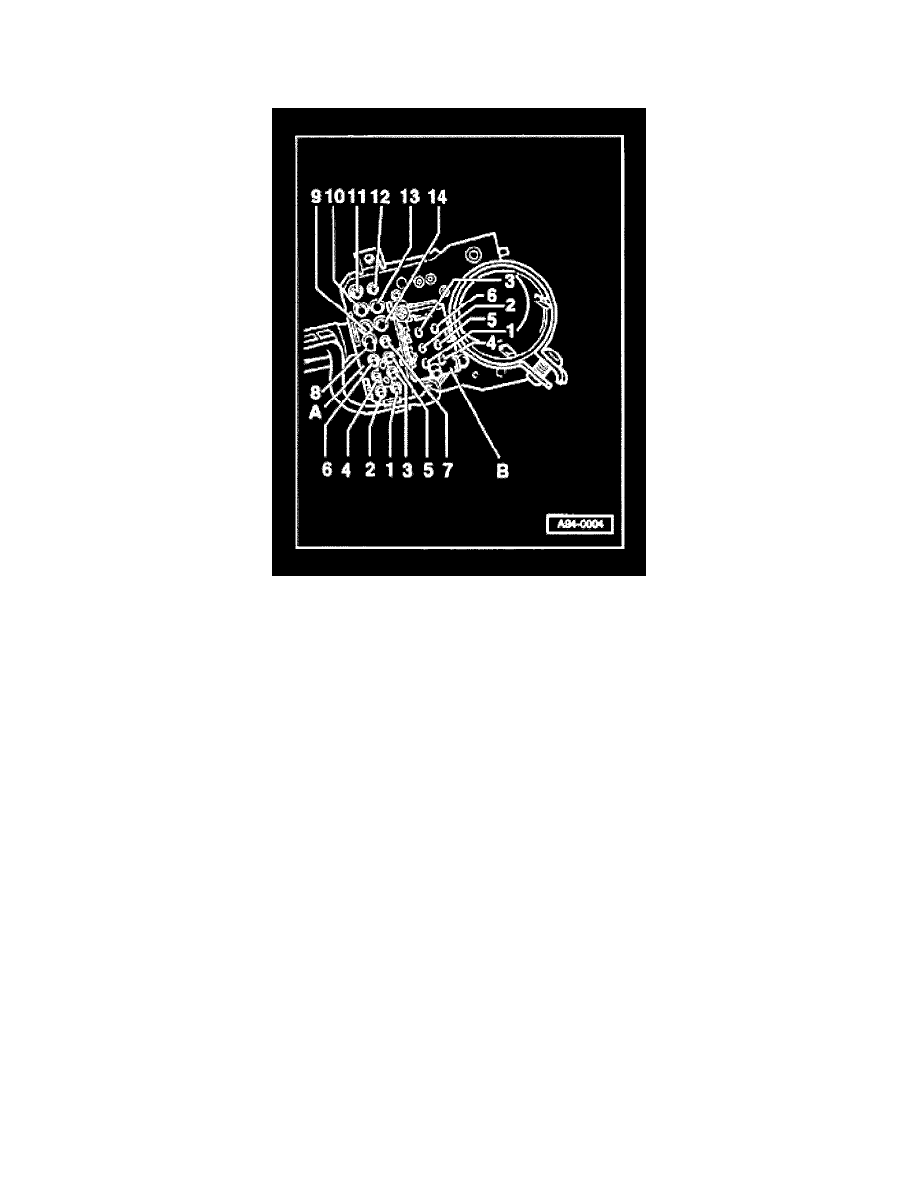

B - 6-pin Connector, Cruise Control System

1

-

On and resume

2

-

Resume

3

-

Set

4

-

Terminal 15

5

-

On, resume, and off (click stop engaged)

6

-

Input from control module, terminal 3
