A4 Sedan V6-3.2L (BKH) (2007)
/Page-677001.png)
Coolant Line/Hose: Locations

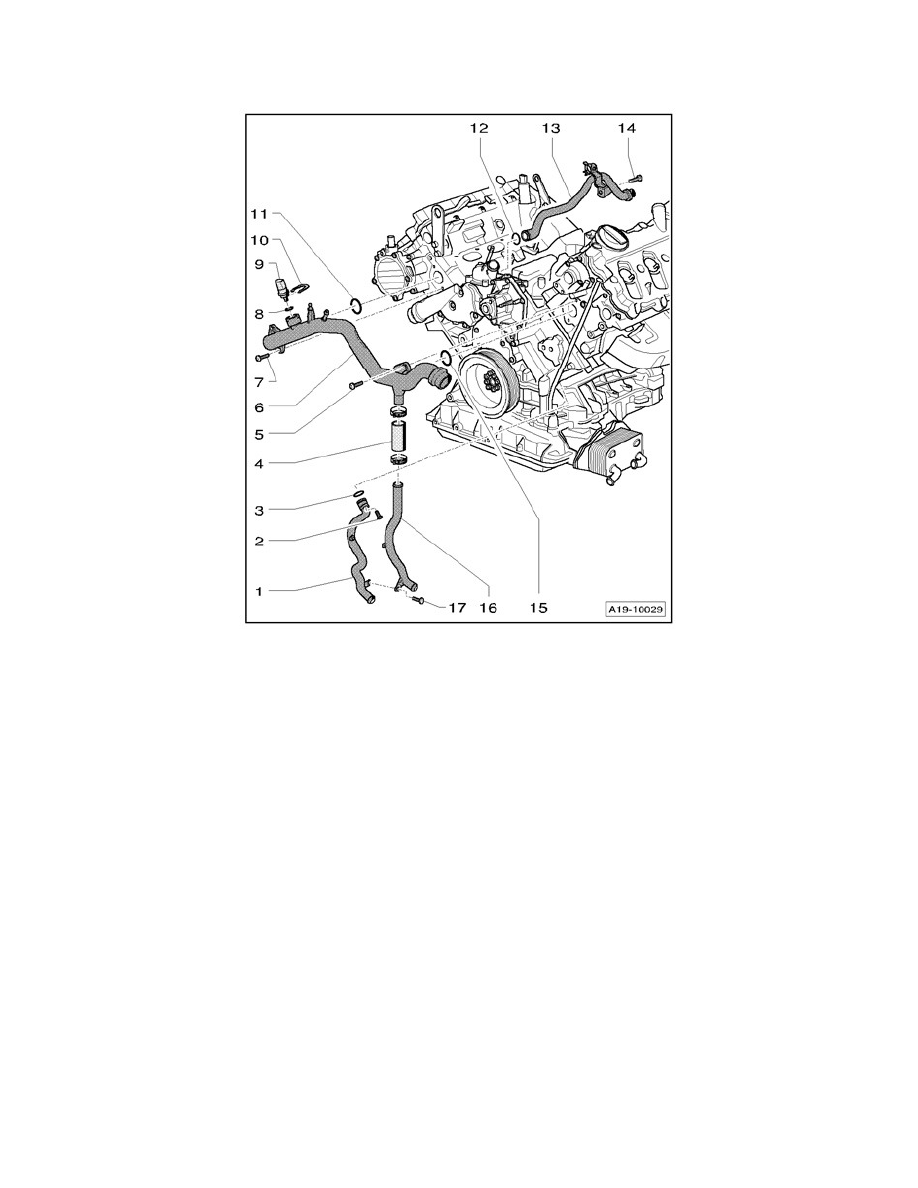

Coolant pipes, component overview
1 - Left coolant line
2 - 9 Nm
3 - O-ring
^
Replace
4 - Connecting hose
5 - 9 Nm
6 - Front coolant line
7 - 9 Nm
8 - O-ring
^
Replace
9 - Engine Coolant Temperature (ECT) Sensor G62
10 - Retaining clip
11 - Seal
^
Replace
12 - O-ring
^
Replace
13 - Upper coolant line
14 - 9 Nm
15 - Seal
^
Replace
16 - Left coolant line
17 - 9 Nm
