Routing of brake hoses/lines Replacement brake hoses and brake lines are supplied as spare parts ready to be installed. Secure brake hoses and brake lines to the original mounting points when installing. Brake lines to hydraulic unit –  Items -1- to -4- Hexagon nuts, 14 Nm tightening torque

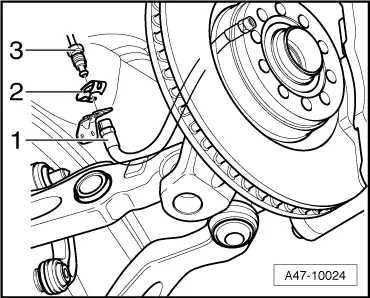

–  Items -5- and -6- Hexagon nuts, 14 Nm tightening torque Brake hose to brake caliper at front axle –  Item -1- Brake hose; make sure that locating lugs engage properly in bracket. –  Item -2- Retaining spring

–  Item -3- Brake line, 14 Nm –  Item -1- Brake line, 14 Nm –  Item -2- Retaining spring

–  Item -3- Brake hose; make sure that locating lugs engage properly in bracket. Brake line routing in wheel housing at front axle –  Item -1- Brake line, 14 Nm –  Item -2- Connection piece

–  Item -3- Brake line, 14 Nm Brake line connection in wheel housing at front wheels –  –  Item -1- Brake hose bracket

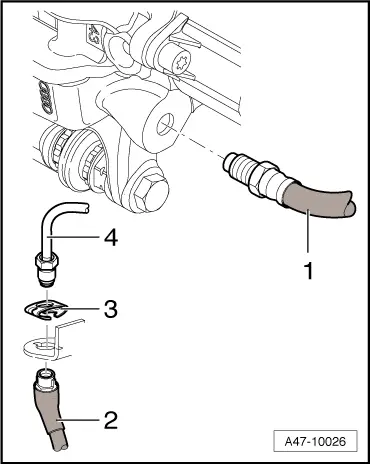

–  Item -2- Brake line, 14 Nm Routing of brake lines at rear wheels –  Item -1- Brake hose in brake caliper, 20 Nm –  Item -2- Brake hose retainer; make sure that locating lugs engage in bracket. –  Item -3- Retaining spring

–  Item -4- Brake line, 14 Nm
