Exploded view - selector lever cable > < Gearbox mechanics,operation, construction,diff.|ATF

7-speed dual clutch gearbox 0B5: ATF cooler, lines, and filter

Cleaning ATF lines and ATF cooler
Cleaning ATF lines and ATF cooler
Special tools and workshop equipment required

t  Used oil collection and extraction unit -V.A.G 1782-
t  Hose, approx. 18 mm dia.
t  Compressed-air gun (commercially available)
t  Safety goggles
  W00-10211
Procedure
  Note
→ Chapter „Rules for cleanliness when working on the dual clutch gearbox“.
–  Remove noise insulation panels -1- and -2- → General body repairs, exterior; Rep. gr.66.
  WARNING
Risk of eye injury.
Wear safety goggles.
–  Place used oil collection and extraction unit -V.A.G 1782- below connections.
  A10-11071
Vehicles with in-line ATF filter:

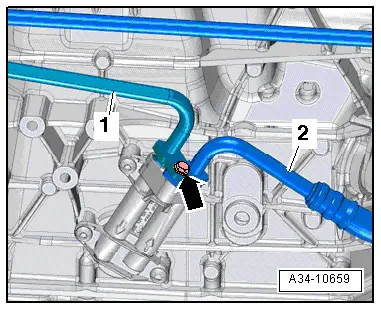

–  Remove bolt -arrow- and detach ATF line -1- from gearbox.
  Note
If in-line ATF filter is not being removed, ATF line to in-line ATF filter -2- does not have to be disconnected.
  A34-10659
–  Remove bolt -1-.
–  Pull out retaining clip -arrow- and disconnect ATF line from in-line ATF filter.
  Note
Disregard -item 2- if not removing in-line ATF filter.
  A34-10658

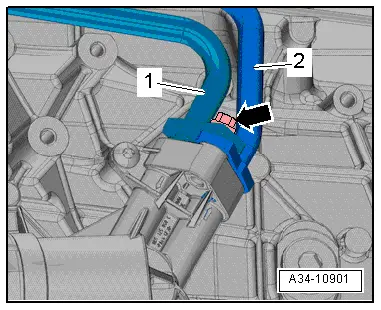

Vehicles with exchangeable ATF filter:
–  Remove bolt -arrow- and detach ATF lines -1, 2- from gearbox.
All vehicles
–  Blow out ATF lines and ATF cooler with compressed air (not more than 10 bar).
  Note
If the ATF which emerges during cleaning is very dirty, the ATF cooler and ATF lines must additionally be flushed out with clean ATF.
  A34-10901
For vehicles with in-line ATF filter
–  Always renew in-line ATF filter after renewing gearbox or if ATF is very dirty → Chapter.
  A34-10658

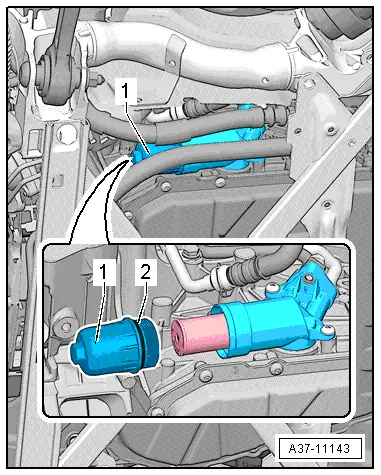

For vehicles with exchangeable ATF filter
–  Renew exchangeable ATF filter if ATF is very dirty → Chapter.
  Note
t  For vehicles equipped with an exchangeable ATF filter, this filter is supplied together with a new gearbox.
t  The exchangeable ATF filter must be renewed every time the ATF is changed.
–  Install ATF lines → Chapter.
  A37-11143
