A5

ATF capacity
ATF capacity

CapacitiesDual clutch gearbox 0B5: ATF
Initial filling by manufacturerapprox. 7 to 7.5 ltr. 1)
ATF change capacityapprox. 6.7 ltr.
Change interval → ELSA maintenance tables
–  If fitted, renew ATF filter (exchangeable filter) 2)
LubricantFor ATF specifications for dual clutch gearbox 0B5 refer to → Electronic parts catalogue.
l  1) The manufacturer fills the gearbox to the normal level plus 0.5 ltr. The excess quantity of 0.5 ltr. is for filling the empty ATF cooler after the gearbox is installed.
l  2) On vehicles with exchangeable ATF filter, the filter must be renewed as well when changing the ATF → Anchor.

  Caution
Risk of damage to gearbox
t  Use only the ATF supplied as a replacement part for dual clutch gearbox 0B5.
t  Select correct type → Electronic parts catalogue.
t  Other types of ATF or other oils cause malfunctions and/or failure of the gearbox.
t  The ATF filling unit must be clean and the ATF must not be mixed with other types of oil!
t  → Chapter „Checking and correcting ATF level“
t  → Chapter „Draining and filling ATF“

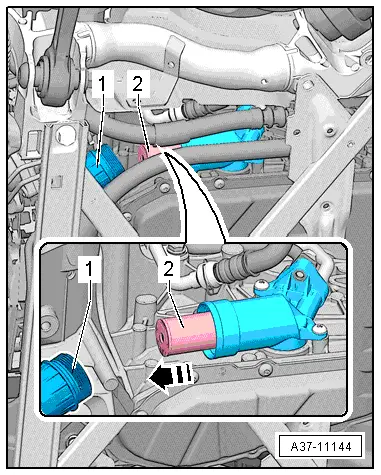

On gearbox versions with exchangeable ATF filter -2-:
  Caution
Risk of damage to gearbox
The exchangeable ATF filter -2- must always be renewed when the ATF is changed.
–  Renew ATF filter (exchangeable filter) → Chapter.
  A37-11144
