Rear final drive identification (Rear final drive 0BD)

Make

Audi

Model

A5

Section

Rear final drive 0BD › Technical data › Rear final drive identification

Power transmissionRear final drive identification

Rear final drive identification The rear final drive 0BD is installed in conjunction with the following gearbox types: t  6-speed manual gearbox 0B2, four-wheel drive t  6-speed manual gearbox 0B4, four-wheel drive t  7-speed dual clutch gearbox 0B5, four-wheel drive t  Automatic gearbox 0B6, four-wheel drive t  8-speed automatic gearbox 0BK, four-wheel drive Rear final drive allocation t  → Chapter „Audi A4 2008 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi A5 Coupé 2008 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi A5 Cabriolet 2009 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi Q5 2008 ► - Code letters, allocation, transmission ratios, capacities“

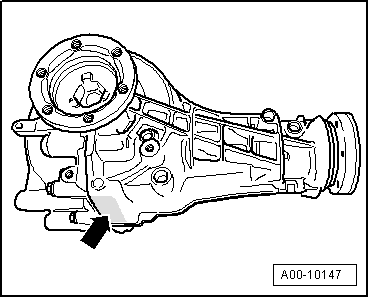

Location on rear final drive Final drive 0BD, code letters and date of manufacture -arrow-

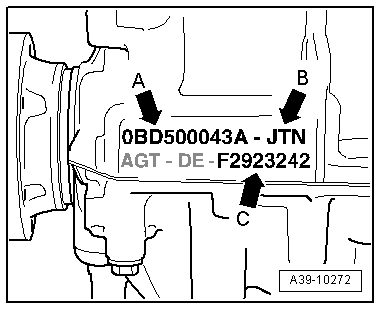

-Arrow A- Final drive 0BD with Part No. (in this example 0BD 500 043A) -Arrow B- Code letters “JTN” -Arrow C- Manufacturing data of rear final drive

Example:	F	292	3242
	I	I	I
	Year of manufacture -2006- F = 2006, G = 2007, H = 2008 ...	Day of manufacture -292nd day of year- (always specified in three digits)	Serial number on day of manufacture

Other information can be disregarded.   Note When installing a new rear final drive unit, it is important to verify not only the code letters of the rear final drive but also the PR No. and the engine code of the vehicle in the → Electronic parts catalogue. This is necessary to ensure that the correct version is installed.
