6-cylinder TDI engine (2.7 ltr.; 3.0 ltr. 4-valve common rail), mechanics
Engine lubrication
Engine oil cooler, pressure control valve, oil filter housing and oil pressure switch
Removing and installing oil filter housing
Removing and installing oil filter housing
Removing and installing oil filter housing
Special tools and workshop equipment required
t
Magnetic fitting tool
Removing
–
Remove engine cover panel
-arrows-
.
Engine codes CAMA, CAMB, CAPA:
–
Detach electrical connector
-2-
from bracket and move clear to side.
Note
Disregard
-item 1-
.
Engine codes CCLA, CCWA, CCWB, CGKA, CGKB:
–
Remove exhaust gas recirculation control motor -V338-
→ Chapter
.
All vehicles (continued):
–
Remove oil filter element
→ Booklet811
,
→ Booklet812
or
→ Booklet818
.
–

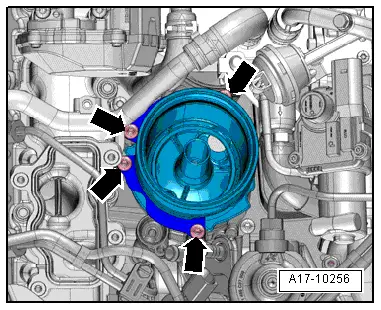

Remove bolts
-arrows-
for retaining clip.
Note
Use magnetic fitting tool to remove bolts and retaining clip for oil filter housing.
–
Tie two cable ties
-2-
and
-3-
into loops and secure them in upper groove on oil filter housing with a third cable tie
-1-
.
–
Lift off oil filter housing with cable ties
-arrow-
.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torque
→ Chapter „Engine oil cooler, pressure control valve, oil filter housing and oil pressure switch - exploded view“
Note
t
Fit new O-rings.
t
Use magnetic fitting tool to insert bolts securing retaining clip for oil filter housing.
Engine codes CCLA, CCWA, CCWB, CGKA, CGKB:
–
Install exhaust gas recirculation control motor -V338-
→ Chapter
.
All vehicles (continued):
–
Change engine oil
→ Booklet811
,
→ Booklet812
or
→ Booklet818
.
