Removing and installing pressure control valve for crankcase breather system
Removing and installing pressure control valve for crankcase breather system

Removing
–  Drain coolant → Chapter.
–  Remove intake manifold (top section) → Rep. gr.23.

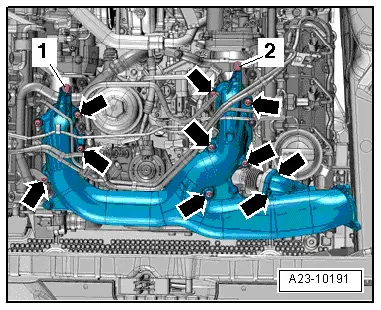

  A23-10191
–  Remove intake manifold (bottom section, right-side) → Rep. gr.23.
–  Remove exhaust gas recirculation cooler → Chapter.

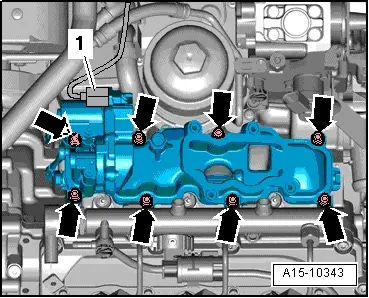

  A15-10343
–  Detach hose -arrow- from pressure control valve for crankcase breather system.
–  Unscrew bolts -1- and -2- and remove pressure control valve for crankcase breather system.
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torque → Chapter „Engine oil cooler, pressure control valve, oil filter housing and oil pressure switch - exploded view“
  Note
t  Fit new O-rings.
t  Secure all hose connections with the correct type of hose clips (same as original equipment) → Electronic parts catalogue.
–  Install exhaust gas recirculation cooler → Chapter.
–  Install bottom section of intake manifold (right-side) and top section of intake manifold → Rep. gr.23.
–  Fill up with coolant → Anchor.
