A5

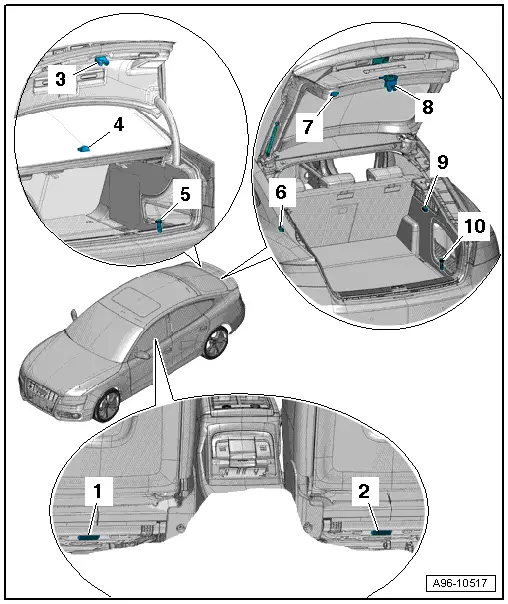

Overview of lights and switches in front seats, luggage compartment |
1 - | Rear left footwell light -W45- |
q | Removing and installing → Chapter |
2 - | Rear right footwell light -W46- |
q | Removing and installing → Chapter |
3 - | Rear lid contact switch |
q | 2-door models |
4 - | Luggage compartment light -W3- |
q | 2-door models |
q | 12 V, 5 W |
q | Removing and installing → Chapter |
5 - | 12 V socket 3 -U19- |
q | 2-door models |
q | Exploded view → Chapter |
6 - | Luggage compartment light on left -W18- |
q | 2-door models |
q | 12 V, 5 W |
q | Removing and installing → Chapter |
7 - | Luggage compartment light -W3- in rear lid |
q | 5-door models |
q | 12 V, 5 W |
q | Removing and installing → Chapter |
8 - | Rear lid contact switch |
q | 5-door models |
q | Removing and installing → Chapter |
9 - | Luggage compartment light -W3- (right-side) |
q | 5-door models |
q | 12 V, 5 W |
q | Removing and installing → Chapter |
10 - | 12 V socket 3 -U19- |
q | 5-door models |
q | Exploded view → Chapter |
