A5

Overview of socket, trailer detector control unit

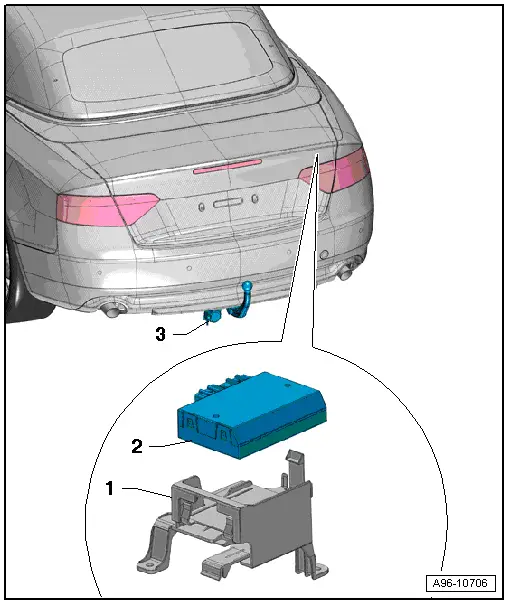

Overview of socket, trailer detector control unit
1 - Bracket
q   For trailer detector control unit -J345-
2 - Trailer detector control unit -J345-
q   Removing and installing → Chapter
3 - Electric socket
q   For towing bracket
q   Removing and installing → Electrical system; General information; Rep. gr.96
q   Pin assignment → Electrical system; General information; Rep. gr.96
