A5

Removing and installing suppression filterC24
Removing and installing suppression filter -C24-
Removing
–  Remove fuse holder B in engine compartment electronics box → Chapter.
  Note
The electrical connectors do not need to be detached.

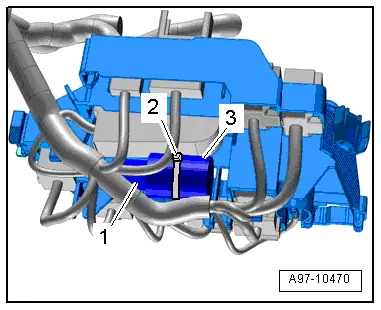

–  Cut through cable tie -2-.
–  Unplug electrical connector -1-.
–  Detach suppression filter -C24--item 3-.
Installing
Installation is carried out in the reverse order; note the following:
  Note
Refit all cable ties at the same locations when reinstalling.
–  Install fuse holder B in engine compartment electronics box → Chapter.
  A97-10470
