Separating fibre optic cable from wiring harness connector
Separating fibre optic cable from wiring harness connector

Removing
–  Unplug connector for fibre optic cable from appropriate control unit.
–  Release catch in connector for fibre optic cable -arrow-.
  A97-0791
–  Pull basic module -2- for fibre optic cable out of connector housing -1-.
  A97-0792
  Caution

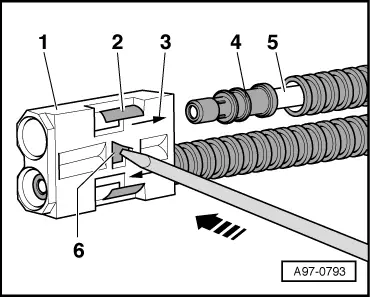

t  Mark assignment of fibre optic cable -5- to corresponding sockets in module -1- with coloured dots.
t  Pay attention to arrows -3- on basic module for „IN“ and „OUT“ assignment.
–  Release secondary catch -6- (blue pin) using a small screwdriver -arrow-.
–  Release retaining tab -2- and pull fibre optic cable -5- with brass pin -4- out of module -1-.
Installing
Installation is carried out in the reverse order; note the following:
  Note
  A97-0793
t  Seal off open connector plug -2- for fibre optic cable with protective cap for cable connector -VAS 6223/9--item 1-.
t  Protective cap prevents contamination of or mechanical damage to end face of fibre optic cable which would impair light transmission.
–  Fit fibre optic cable in accordance with markings.
  A97-0760
