A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-6528001.png)
CD Changer: Diagrams
CD Changer
‹› Unlisted connector terminals are not assigned.

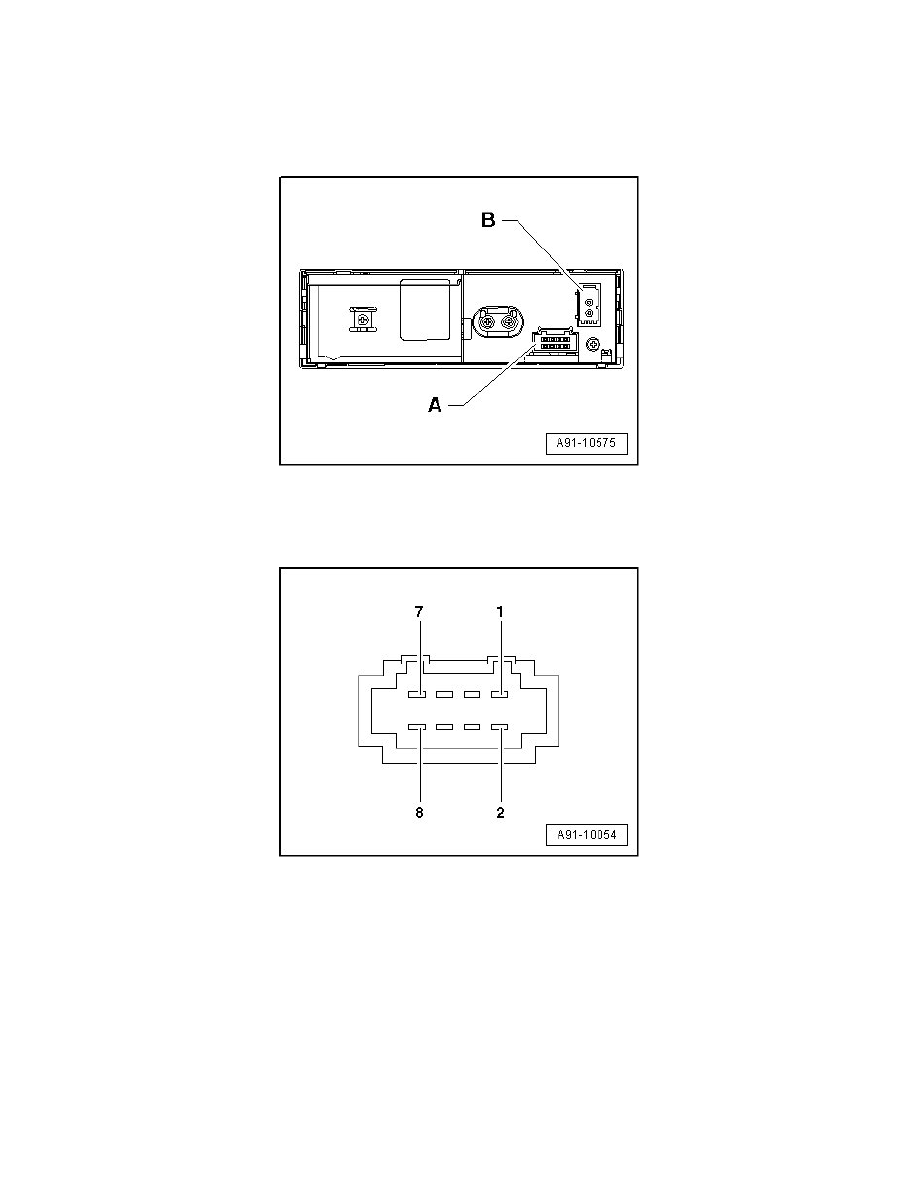

Connectors
A Black 8-pin multi-pin connector (T8m/T8n)
B MOST-Bus
A - Black 8-pin multi-pin connector (T8m/T8n)
1
Terminal 31
2
Terminal 30
5
Ring-break diagnostic wire
B - MOST Bus
