A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2023002.png)
-

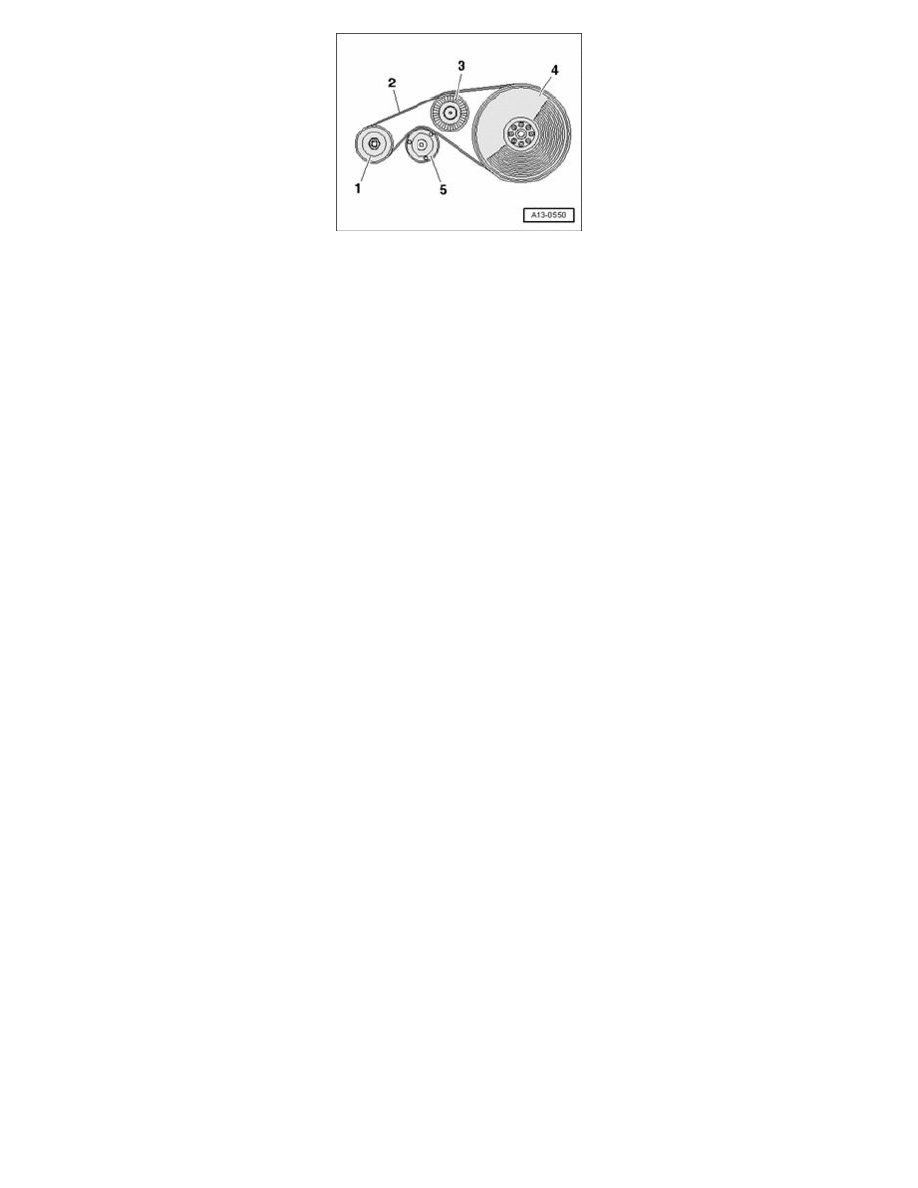

Route ribbed belt - 2 - over belt pulley in specified sequence.
1. Generator
3. Idler roller
4. Vibration damper
5. Tensioning roller
Note:
^
When installing the ribbed belt, ensure it is seated correctly on the pulleys.
-
Start engine and check running belt.
