Drive Belt: Service and Repair
Ribbed Belt Drive, Assembly Overview

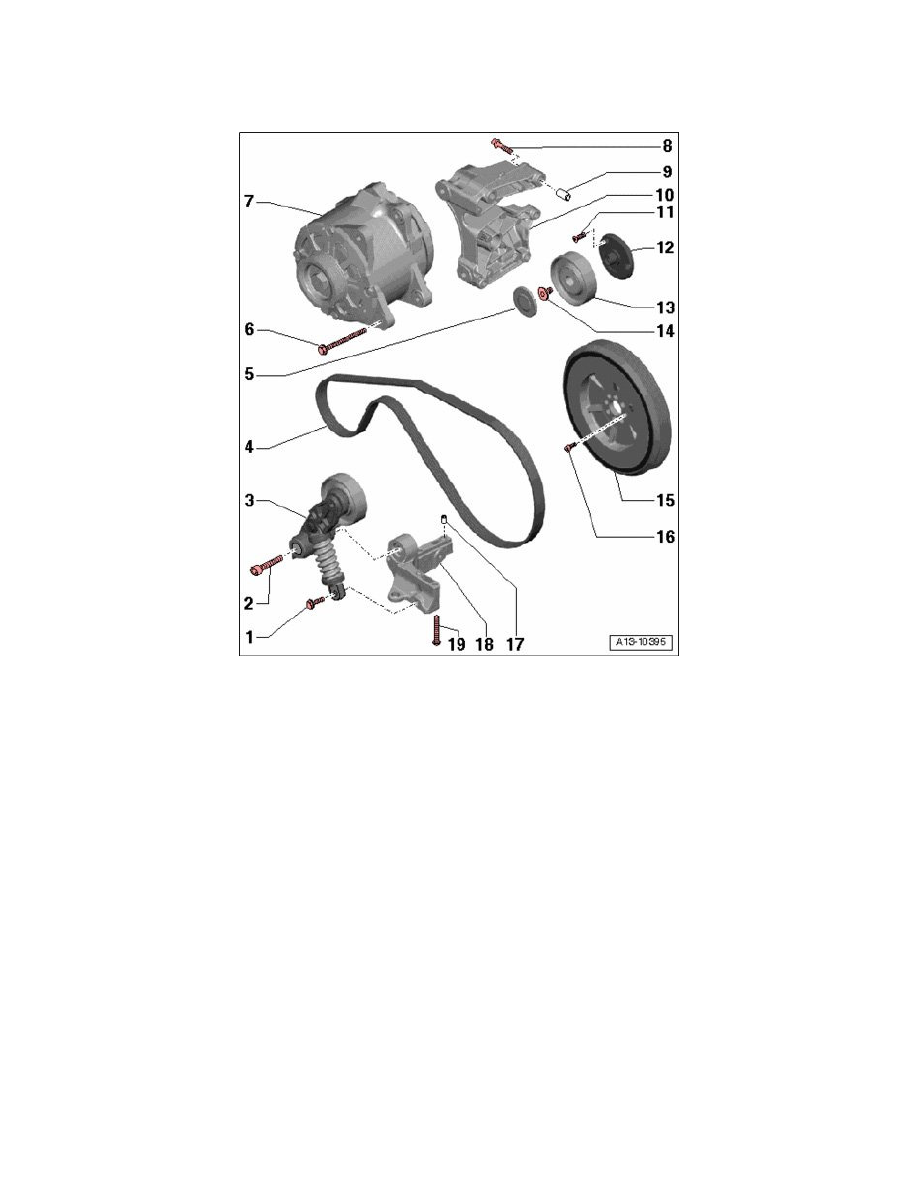

Ribbed belt drive, assembly overview
1. Bolt
^
22 Nm
2. Bolt
^
55 Nm
3. Tensioning device for ribbed belt
4. Ribbed belt
^
Check for wear
^
Do not kink
CAUTION:
Risk of destroying due to reversed running direction on a used ribbed belt.
^
Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.
^
When installing, make sure it is seated correctly on pulleys
5. Cover cap
6. Bolt
^
22 Nm
7. Generator
8. Bolt
^
M8: 22 Nm
^
M10: 46 Nm
