A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-2123003.png)

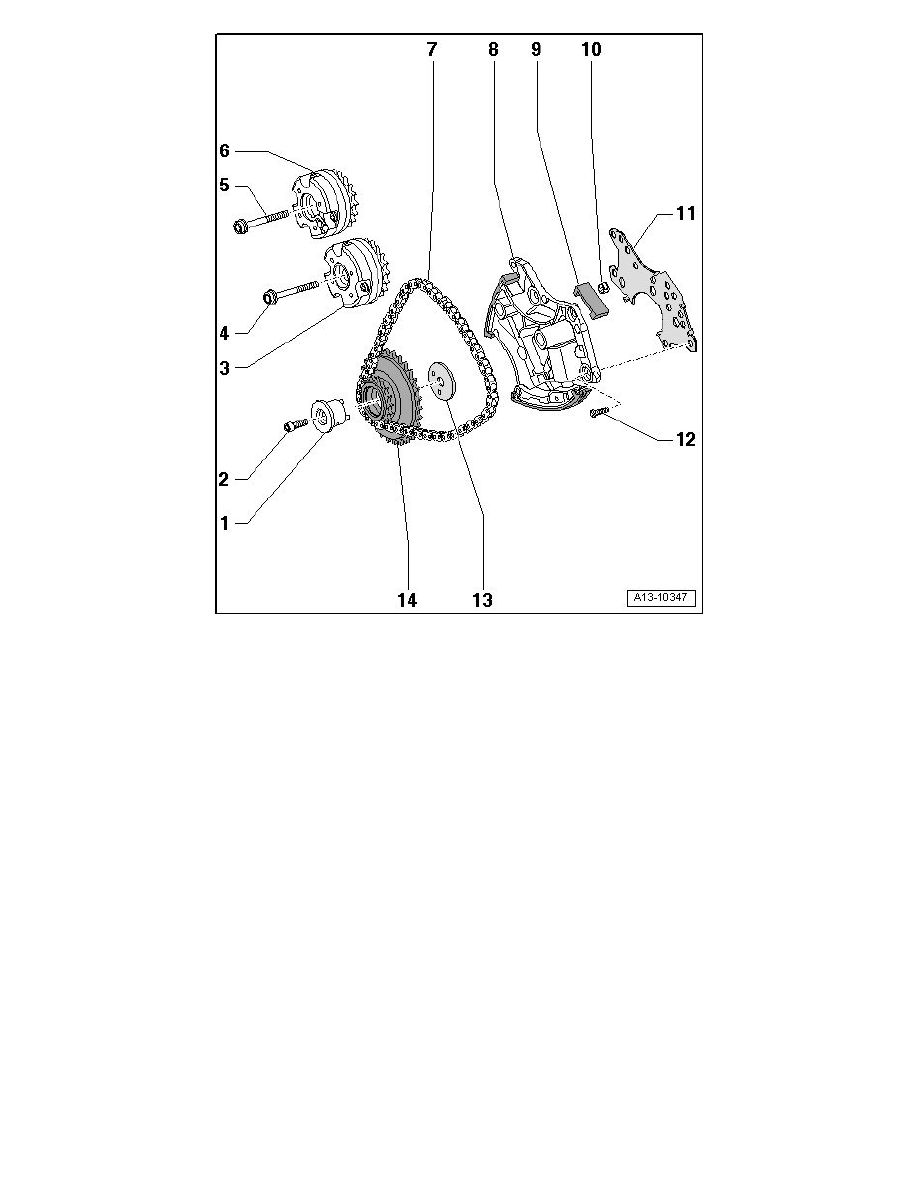

1
Mounting bracket for drive sprocket
‹› For right camshaft timing chain
‹› Asymmetrical version
‹› Installed location => [ Right camshaft timing chain drive sprocket mounting bracket location ]
2
Bolt
‹› 42 Nm
3
Camshaft adjuster for exhaust camshaft
‹› Identification "Exhaust"
‹› Removing and installing => [ Camshaft Timing Chain ] See: Camshaft Timing Chain
4
Bolt
‹› Replace
‹› 80 Nm plus an additional 90° (1/4 turn).
5
Bolt
‹› Replace
‹› 80 Nm plus an additional 90° (1/4 turn).
