A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-5607001.png)
Compressor Pulley: Service and Repair

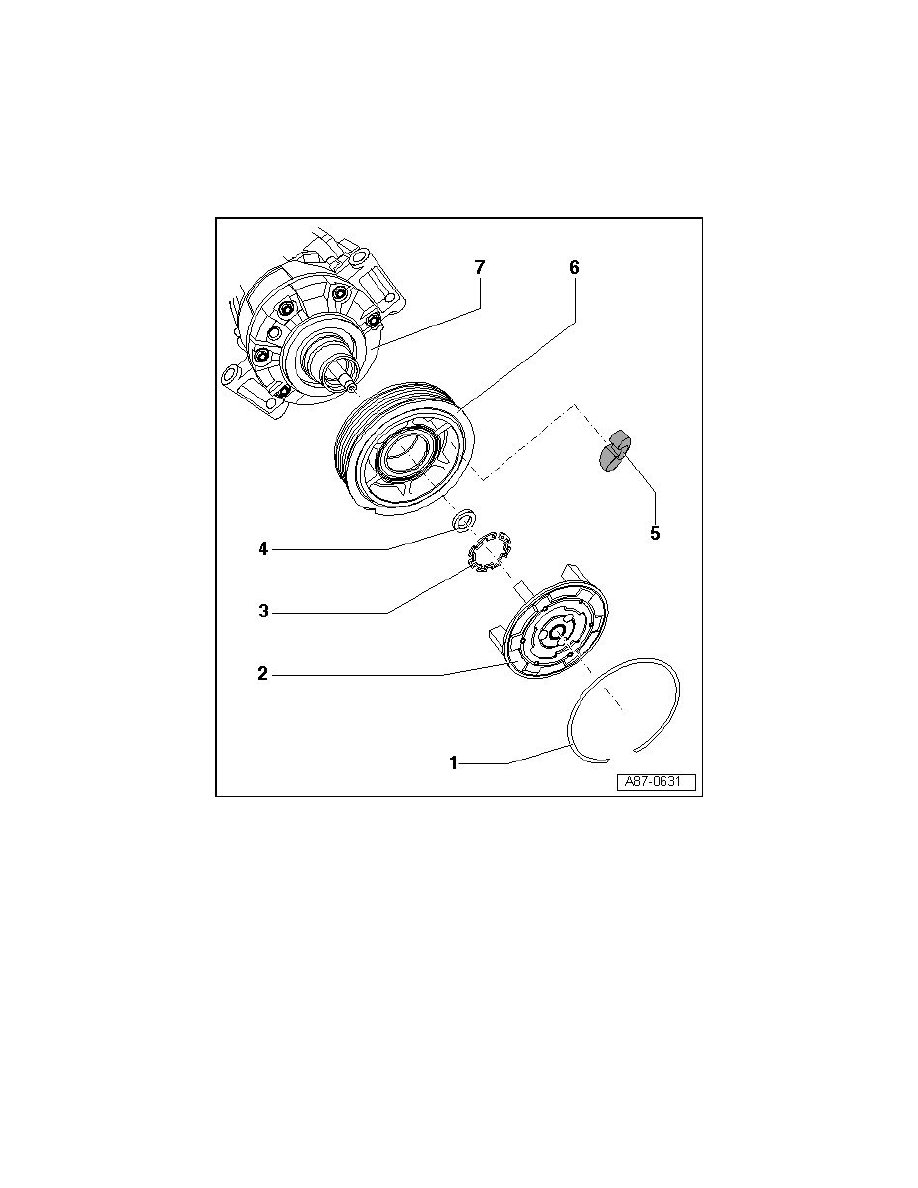

Drive Plate with Roller Bearing
Drive Plate with Roller Bearing
-
Remove drive plate from compressor shaft => [ Drive Plate, from Compressor ] See: Drive Plate, From Compressor.
-

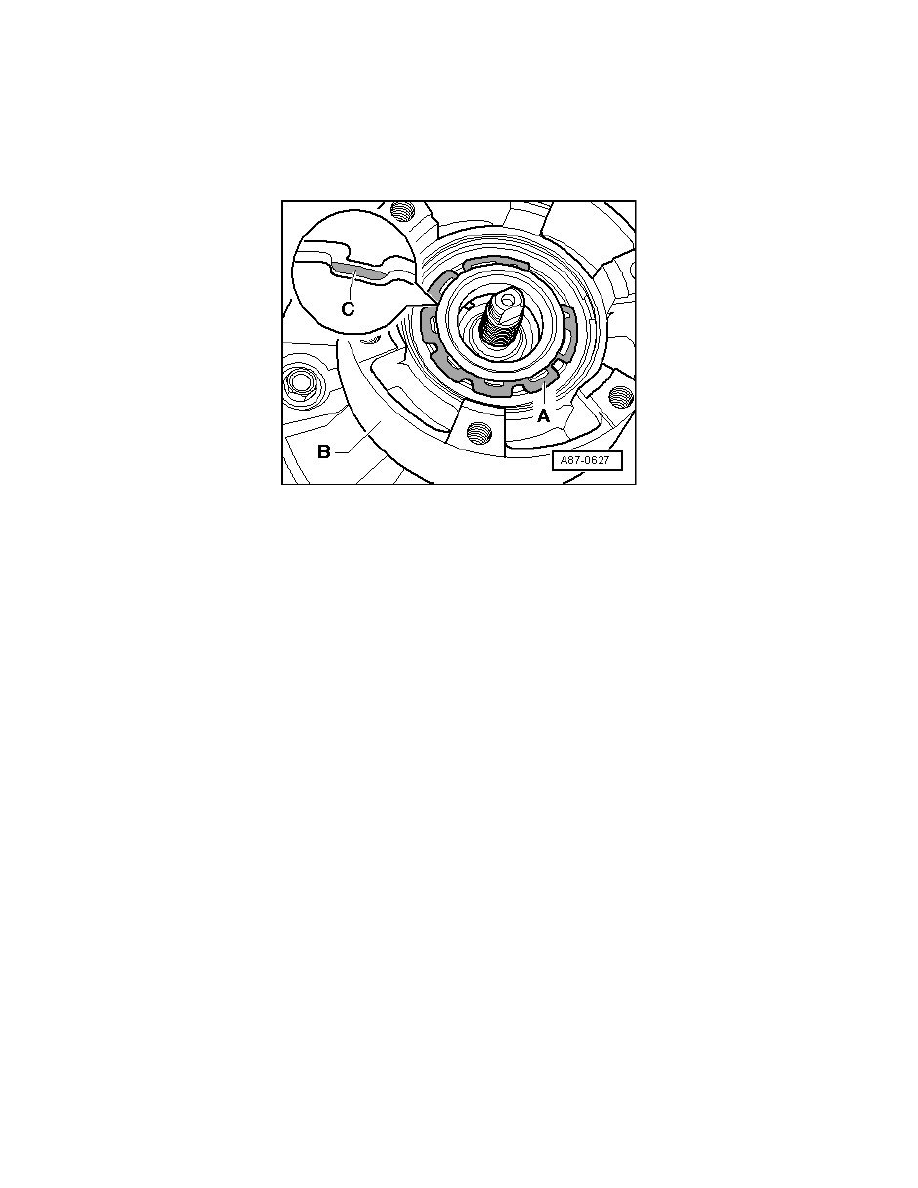

Remove circlip - A -.
-
Remove drive plate - B -.
‹› Replace circlip - A -.
‹› Clean compressor flange before sliding on drive plate.
‹› When installing circlip - A -, note that it cannot be bent open more than is necessary for installation.
‹› Insert circlip - A - on proper side, the side with beveled insertion edge - C - faces away from compressor (install flat side facing compressor).
