A6 Quattro Sedan V8-4.2L (BVJ) (2007)

Page 2
background image

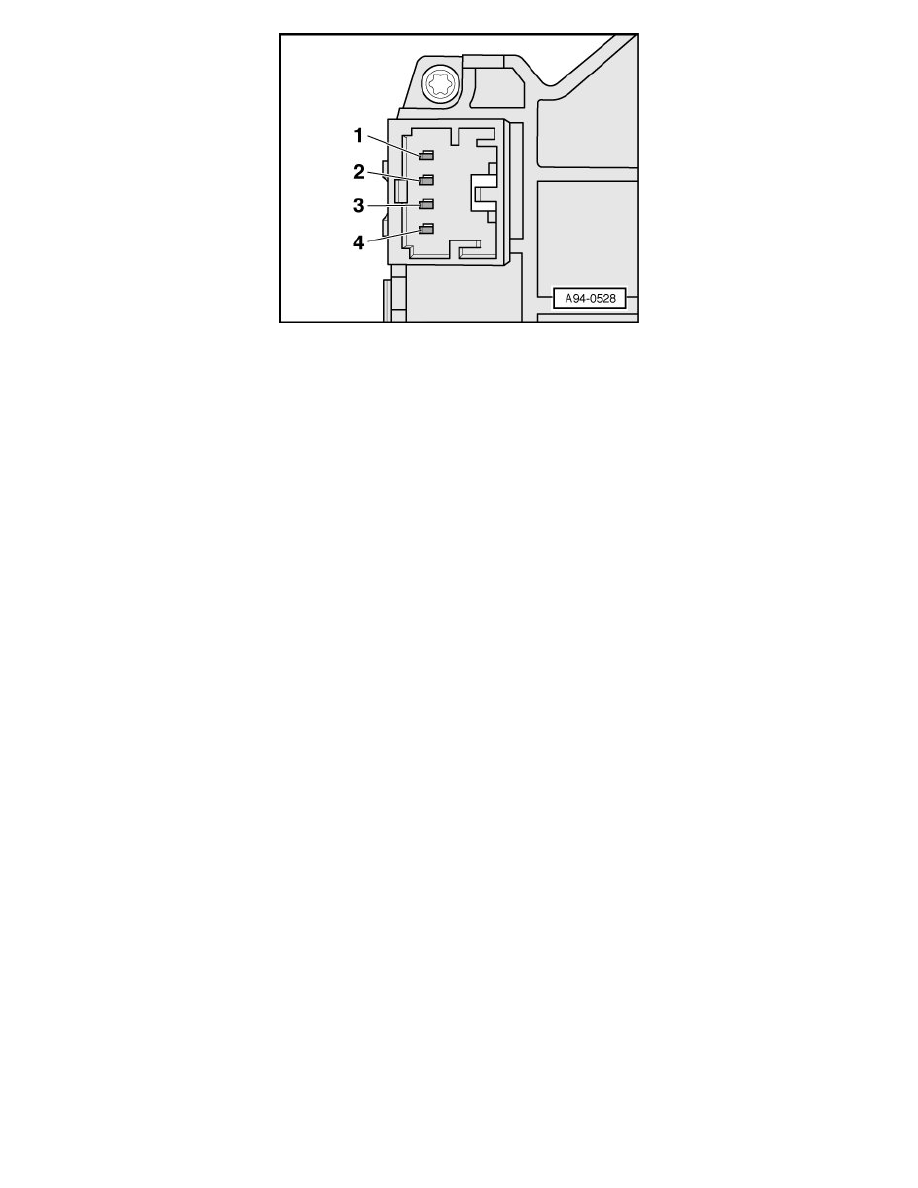

1. Easy Entry

2. Steering column adjustment switch

3. Terminal 31

4. not used
