A6 Quattro Sedan V8-4.2L (BVJ) (2007)
/Page-3541001.png)
Shift Cable: Service and Repair

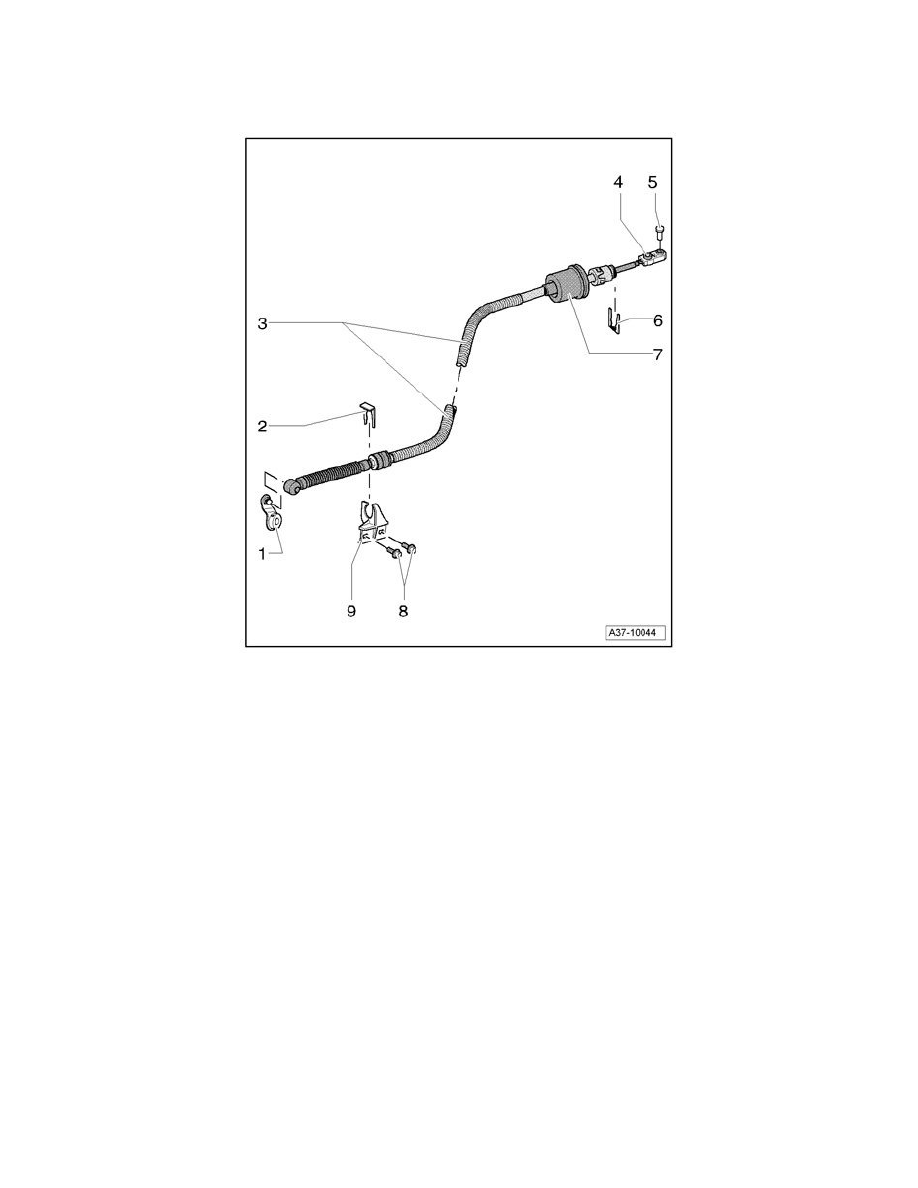

Selector Lever Cable, Assembly Overview
Selector lever cable, assembly overview 09L, 6 Speed AWD A/T
1 - Selector shaft lever
2 - Retaining clip
^
Secures selector lever cable to support bracket
3 - Selector lever cable
^
Before installing, lightly lubricate ball socket with polycarbamide grease G052142 A2
4 - Clamping bolt for selector lever cable, 13 Nm
5 - Pin for selector lever cable
6 - Retaining clip
^
Secures selector lever cable to selector housing
7 - Rubber sleeve for selector lever cable
8 - Bolt, 10 Nm
^
Securing support bracket to transmission
9 - Support bracket for selector lever cable
