A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-2272005.png)
^

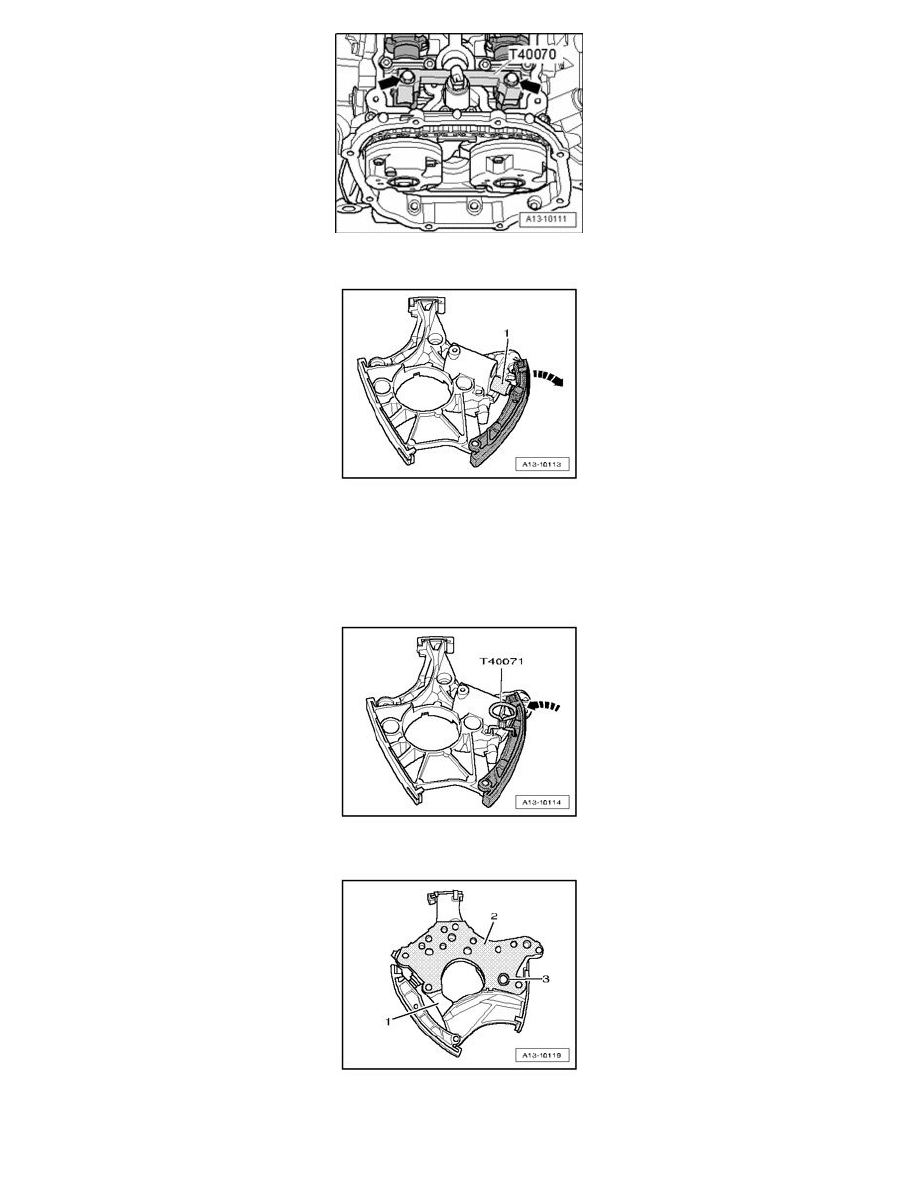

Camshaft locating tool T40070 mounted on both cylinder heads and tightened to 20 Nm.
-
Fully relieve tension of guide rail for left and right camshaft timing chain tensioner - arrow -.
^
The piston of tensioning element - 1 - must be driven out completely, thereby releasing retainer - for this the chain tensioner must be removed.
Note:
^
If the tensioning element is to be removed from the chain tensioner, observe the installed position: Hole in housing floor faces toward chain
tensioner, piston faces toward tensioning rail.
-
Press guide rail of left and right camshaft timing chain inward - arrow - up to stop and secure chain tensioner with securing pin T40071.
-
Clean oil strainer - 3 - in both chain tensioners if necessary.
-
Place a new gasket - 2 - onto rear of chain tensioner - 1 -.
